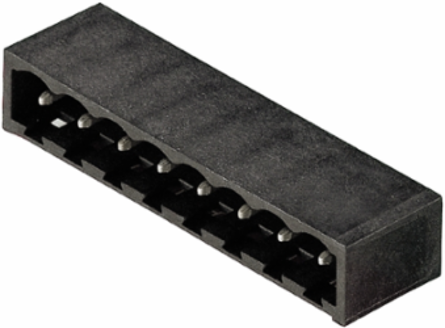

Weidmuller 1877790000 SL-SMT 5.08HC/07/270GL 1.5SN BK RL
- MPN: 1877790000
- PPN: WDM-1877790000
CAD
$4.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

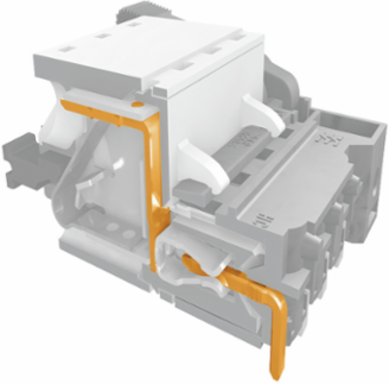

PCB plug-in connector, male header, closed side, THT/THR solder connection, 5.08 mm, Number of poles: 7, 270°, Solder pin length (l): 1.5 mm, tinned, black, Tape
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 18.5 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform

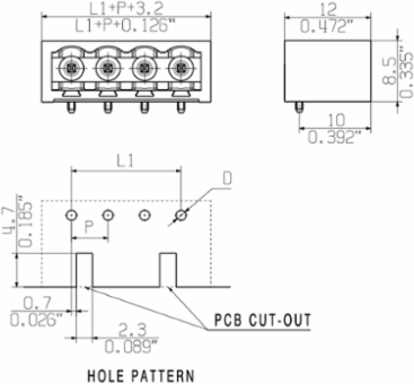

Dimensions And Weights
- Width
- 38.76 mm
- Height
- 10 mm
- Height of lowest version
- 8.5 mm
- Depth (inches)
- 0.472 inch
Width (inches)1.526 inch
Height (inches)0.394 inch
Depth12 mm
Net weight3.76 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 19 A
- Rated current, max. number of poles (Tu=40°C)
- 16.5 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)27.5 A
Rated current, min. number of poles (Tu=40°C)24 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Material Data
- Insulating material
- LCP GF
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 175
- Moisture Level (MSL)
- 1
- GWIT
- 930 °C
- Contact material
- CuMg
- Layer structure of solder connection
- 1-3 µm Ni / 2-4 µm Sn matt
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourblack
Insulating material groupIIIa
Insulation strength≥ 108 Ω
UL 94 flammability ratingV-0
GWFI960 °C
Contact surfacetinned
Layer structure of plug contact1-3 µm Ni / 2-4 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-30 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10

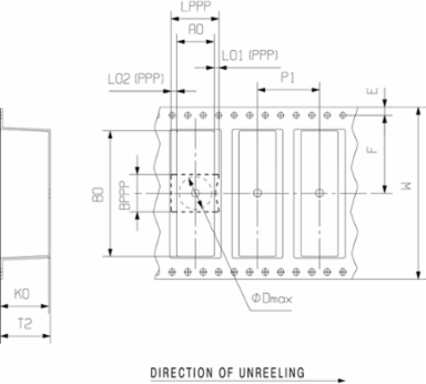

Packing
- Packaging
- Tape
- VPE width
- 0
- Tape depth (T2)
- 13 mm
- Tape pocket depth (K0)
- 12.5 mm
- Tape pocket width (B0)
- 44.1 mm
- Tape hole separation (E)
- 1.75 mm

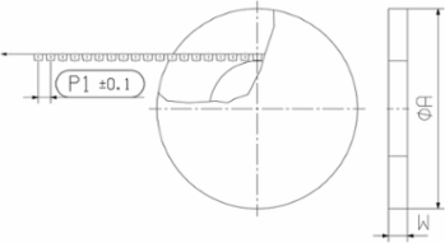

- Tape reel diameter ∅ (A)
- 330 mm
VPE length0
VPE height0
Tape width (W)56 mm
Tape pocket height (A0)12.3 mm
Tape pocket separation (P1)16 mm
Tape pocket separation (F)26.2 mm
Surface resistanceRs = 109 - 1012 Ω
System Specifications
- Product family
- OMNIMATE Signal - series BL/SL 5.08
- Mounting onto the PCB
- THT/THR solder connection
- Pitch in inches (P)
- 0.2 inch
- Number of poles
- 7
- Solder pin length (l)
- 1.5 mm
- Tolerance of solder pin position
- ± 0.1 mm
- Solder eyelet hole diameter (D)
- 1.4 mm
- L1 in mm
- 30.48 mm
- Number of rows
- 1
- Touch-safe protection acc. to DIN VDE 57 106
- finger-safe plugged/ back-of-hand-safe unplugged
- Can be coded
- Yes
- Plugging force/pole, max.
- 9 N
Type of connectionBoard connection
Pitch in mm (P)5.08 mm
Outgoing elbow270°
Number of solder pins per pole1
Solder pin length tolerance0 / -0.3 mm
Solder pin dimensionsd = 1.2 mm, Octagonal
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
L1 in inches1.2 inch
Pin series quantity1
Touch-safe protection acc. to DIN VDE 0470IP20 plugged/ IP10 unplugged
Plugging cycles25
Pulling force/pole, max.7 N
Notes
- Notes
- Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 18.5 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1176845
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)18.5 A
