Weidmuller 1641110000 SLD 3.50V/04/180G 3.2SN OR BX
- MPN: 1641110000
- PPN: WDM-1641110000
CAD
$2.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, male header, closed side, THT solder connection, 3.50 mm, Number of poles: 4, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 8 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)8 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 8.4 mm
- Height
- 27.4 mm
- Height of lowest version
- 24.2 mm
- Depth (inches)
- 0.866 inch
Width (inches)0.331 inch
Height (inches)1.079 inch
Depth22 mm
Net weight3 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, max. number of poles (Tu=20°C)
- 8 A
- Rated current, max. number of poles (Tu=40°C)
- 7 A
- Rated voltage for surge voltage class / pollution degree III/2
- 160 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 2.5 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 2.5 kV
Rated current, min. number of poles (Tu=20°C)10.5 A
Rated current, min. number of poles (Tu=40°C)9 A
Rated voltage for surge voltage class / pollution degree II/2200 V
Rated voltage for surge voltage class / pollution degree III/3125 V
Rated impulse voltage for surge voltage class/ pollution degree III/22.5 kV
Short-time withstand current resistance3 x 1s with 80 A
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- CuSn
- Layer structure of solder connection
- 2-3 µm Ni / 5-7 µm Sn glossy
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -30 °C
Colourorange
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10
Packing
- Packaging
- Box
- VPE width
- 72 mm
VPE length58 mm
VPE height113 mm
System Specifications
- Product family
- OMNIMATE Signal - series BL/SL 3.50
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.138 inch
- Number of poles
- 4
- Solder pin length (l)
- 3.2 mm
- Tolerance of solder pin position
- ± 0.1 mm
- Solder pin dimensions = d tolerance
- 0 / -0,03 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in inches
- 0.138 inch
- Pin series quantity
- 2
- Touch-safe protection acc. to DIN VDE 0470
- IP 10
- Can be coded
- Yes
- Plugging force/pole, max.
- 10 N
Type of connectionBoard connection
Pitch in mm (P)3.5 mm
Outgoing elbow180°
Number of solder pins per pole1
Solder pin length tolerance0 / -0.3 mm
Solder pin dimensionsd = 1.2 mm, Octagonal
Solder eyelet hole diameter (D)1.4 mm
L1 in mm3.5 mm
Number of rows2
Touch-safe protection acc. to DIN VDE 57 106Safe from back-of-hand touch
Volume resistance6.00 mΩ
Plugging cycles25
Pulling force/pole, max.8 N
Notes
- Notes

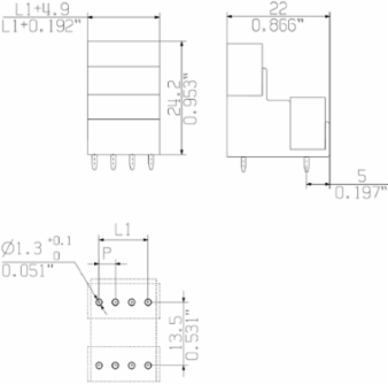

- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 8 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)154685-1318353
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)8 A
