Weidmuller 1725660000 SLD 5.08V/06/180 3.2SN OR BX
- MPN: 1725660000
- PPN: WDM-1725660000
CAD
$2.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

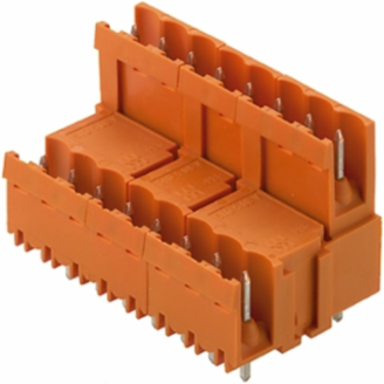

PCB plug-in connector, male header, open side, THT solder connection, 5.08 mm, Number of poles: 6, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 17.78 mm
- Height
- 25.4 mm
- Height of lowest version
- 22.2 mm
- Depth (inches)
- 1.031 inch
Width (inches)0.7 inch
Height (inches)1 inch
Depth26.2 mm
Net weight5.44 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, min. number of poles (Tu=40°C)
- 12 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)14 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- CuSn
- Layer structure of solder connection
- 1-3 µm Ni / 2-4 µm Sn matt
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colourorange
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Layer structure of plug contact1-3 µm Ni / 2-4 µm Sn matt
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10
Packing
- Packaging
- Box
- VPE width
- 110 mm
VPE length65 mm
VPE height145 mm
System Specifications
- Product family
- OMNIMATE Signal - series BL/SL 5.08
- Mounting onto the PCB
- THT solder connection
- Pitch in inches (P)
- 0.2 inch
- Number of poles
- 6
- Solder pin length (l)
- 3.2 mm
- Tolerance of solder pin position
- ± 0.1 mm
- Solder pin dimensions = d tolerance
- 0 / -0,03 mm
- Solder eyelet hole diameter tolerance (D)
- + 0,1 mm
- L1 in inches
- 0.4 inch
- Pin series quantity
- 2
- Plugging cycles
- 25
Type of connectionBoard connection
Pitch in mm (P)5.08 mm
Outgoing elbow180°
Number of solder pins per pole1
Solder pin length tolerance+0.1 / -0.3 mm
Solder pin dimensionsd = 1.2 mm, Octagonal
Solder eyelet hole diameter (D)1.3 mm
L1 in mm10.16 mm
Number of rows2
Can be codedYes
Notes
- Notes

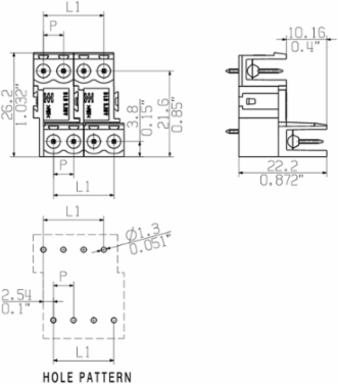

- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Spacing between rows: see hole layout P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
