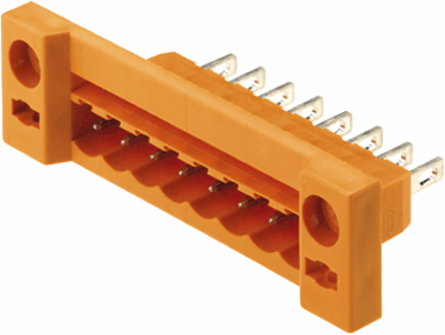

Weidmuller 1599210000 SLDF 5.08 L/F 10 SN OR BX
Weidmuller 1599210000 SLDF 5.08 L/F 10 SN OR BX
- MPN: 1599210000
- PPN: WDM-1599210000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$6.17/ EA
Description
PCB plug-in connector, male header, 5.08 mm, Number of poles: 10, 180°, Flat-blade connection, Solder connection, Box
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Approvals
- Approvals
- CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform

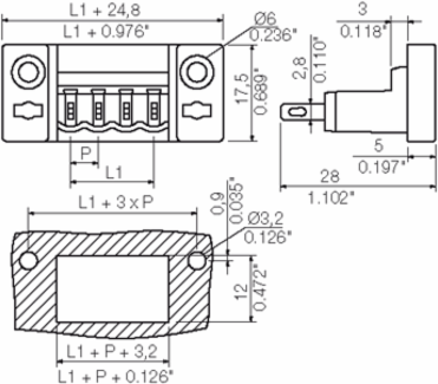

Dimensions And Weights
- Width
- 70.52 mm
- Height
- 17.5 mm
- Depth
- 28 mm
- Net weight
- 11.3 g
Width (inches)2.776 inch
Height (inches)0.689 inch
Depth (inches)1.102 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
- Rated current, min. number of poles (Tu=40°C)
- 13 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)15 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Material Data
- Insulating material
- PBT
- Colour chart (similar)
- RAL 2000
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- CuSn
- Layer structure of plug contact
- 4-8 µm Sn hot-dip tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002637
- eClass 9.0
- 27-44-04-02
- eClass 10.0
- 27-44-04-02
ETIM 7.0EC002637
eClass 9.127-44-04-02
UNSPSC30-21-18-10
Packing
- Packaging
- Box
- VPE width
- 115 mm
VPE length80 mm
VPE height165 mm
System Specifications
- Product family
- OMNIMATE Signal - series BL/SL 5.08
- Pitch in mm (P)
- 5.08 mm
- Number of poles
- 10
- L1 in inches
- 1.8 inch
- Pin series quantity
- 1
- Plugging cycles
- 25
- Pulling force/pole, max.
- 5 N
Type of connectionField connection
Pitch in inches (P)0.2 inch
L1 in mm45.72 mm
Number of rows1
Can be codedYes
Plugging force/pole, max.6.5 N
Notes
- Notes
- Additional colours on request Rated current related to rated cross-section & min. No. of poles. Connectable cables with solder connection solid and flexible up to 2.5 mm² with insulating/shrink-wrap sleeve or from 2.8 mm flat blade receptacles with insulated sleeves acc. to DIN IEC 760 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Reference text
- The outside diameter of the plastic collar should not be larger than the pitch (P).
Rated Data Acc. To Csa
- Institute (CSA)
- CSA
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 10 A
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (CSA)200039-1121690
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
