Weidmuller 2632780000 SLF 7.62HP/04/180LRSH160 SN BK BX
- MPN: 2632780000
- PPN: WDM-2632780000
CAD
$23.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

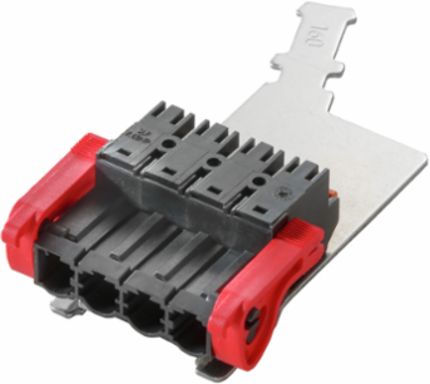

PCB plug-in connector, male plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN, Clamping range, max. : 2.5 mm², Box
Specifications
Rated Data Acc. To Ul 1059
| Rated voltage (Use group B / UL 1059) | 600 V |
|---|---|
| Rated voltage (Use group D / UL 1059) | 600 V |
| Rated current (Use group C / UL 1059) | 20 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Rated voltage (Use group C / UL 1059) | 600 V |
|---|---|
| Rated current (Use group B / UL 1059) | 20 A |
| Rated current (Use group D / UL 1059) | 5 A |
| Wire cross-section, AWG, max. | AWG 12 |

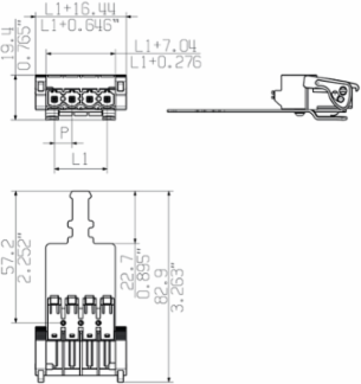

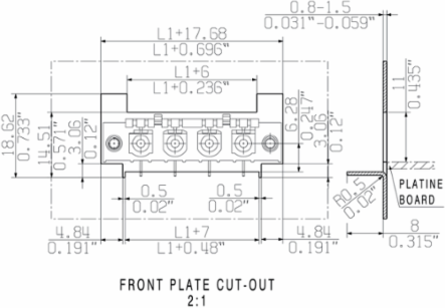

Dimensions And Weights
| Net weight | 26.947 g |
|---|

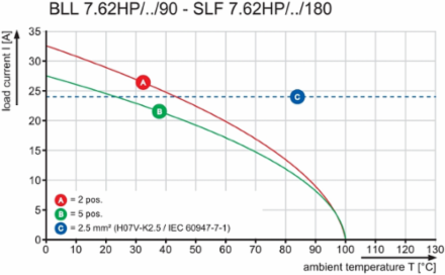

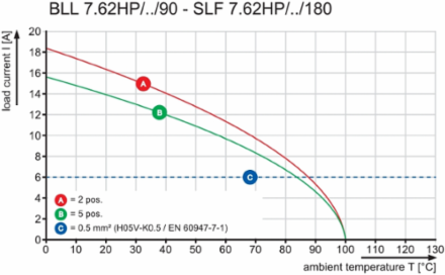

Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|---|
| Rated current, max. number of poles (Tu=20°C) | 24 A |
| Rated current, max. number of poles (Tu=40°C) | 21 A |
| Rated voltage for surge voltage class / pollution degree III/2 | 1,000 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Clearance, min. | 10.7 mm |
| Rated current, min. number of poles (Tu=20°C) | 24 A |
|---|---|
| Rated current, min. number of poles (Tu=40°C) | 23.8 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 630 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 8 kV |
| Short-time withstand current resistance | 3 x 1s with 180 A |
| Creepage distance, min. | 10.7 mm |
Material Data
| Insulating material | PBT |
|---|---|
| Colour of operational elements | orange |
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 200 |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
| Colour | black |
|---|---|
| Material of operational elements | PBT |
| Insulating material group | IIIa |
| Insulation strength | ≥ 108 Ω |
| GWFI | 960 °C |
| Layer structure of plug contact | 2-3 µm Ni / 2-4 µm Sn matt |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
Classifications
| ETIM 6.0 | EC002638 |
|---|---|
| eClass 9.0 | 27-44-03-09 |
| eClass 10.0 | 27-44-03-09 |
| ETIM 7.0 | EC002638 |
|---|---|
| eClass 9.1 | 27-44-03-09 |
System Parameters
| Product family | OMNIMATE Power - series BL/SL 7.62HP |
|---|---|
| Wire connection method | PUSH IN |
| Pitch in inches (P) | 0.3 inch |
| Number of poles | 4 |
| L1 in inches | 0.9 inch |
| Rated cross-section | 2.5 mm² |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Can be coded | Yes |
| Tightening torque for screw flange, min. | 0.15 Nm |
| Screwdriver blade standard | DIN 5264-A |
| Type of connection | Field connection |
|---|---|
| Pitch in mm (P) | 7.62 mm |
| Conductor outlet direction | 180° |
| L1 in mm | 22.86 mm |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Volume resistance | ≤ 5mΩ |
| Stripping length | 10 mm |
| Tightening torque for screw flange, max. | 0.25 Nm |
Packing
| Packaging | Box |
|---|---|
| VPE width | 0 |
| VPE length | 0 |
|---|---|
| VPE height | 0 |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.08 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 20 |
| Solid, min. H05(07) V-U | 0.5 mm² |
| Flexible, min. H05(07) V-K | 0.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.5 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø | 2.8 mm x 2.0 mm |
| Clamping range, max. | 2.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 14 |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 2.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 1.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 1.5 mm² |
| Max. clamping range | 2.5 mm² |
Rated Data Acc. To Csa
| Rated voltage (Use group B / CSA) | 600 V |
|---|---|
| Rated voltage (Use group D / CSA) | 600 V |
| Rated current (Use group C / CSA) | 20 A |
| Wire cross-section, AWG, min. | AWG 20 |
| Rated voltage (Use group C / CSA) | 600 V |
|---|---|
| Rated current (Use group B / CSA) | 20 A |
| Rated current (Use group D / CSA) | 5 A |
| Wire cross-section, AWG, max. | AWG 12 |
