Weidmuller 2123720000 SLS 5.08/03/180B SN GN BX
- MPN: 2123720000
- PPN: WDM-2123720000
CAD
$2.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

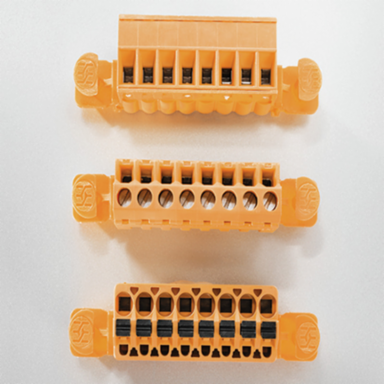

PCB plug-in connector, male plug, 5.08 mm, Number of poles: 3, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box
Documentation & Downloads
Specifications
Rated Data Acc. To Ul 1059
- Institute (UR)
- UR
- Rated voltage (Use group B / UL 1059)
- 300 V
- Rated current (Use group B / UL 1059)
- 14 A
- Wire cross-section, AWG, min.
- AWG 26
- Reference to approval values
- Specifications are maximum values, details - see approval certificate.
Certificate No. (UR)E60693
Rated voltage (Use group D / UL 1059)300 V
Rated current (Use group D / UL 1059)10 A
Wire cross-section, AWG, max.AWG 12
Approvals
- Approvals
- UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Height
- 15.2 mm
- Depth
- 22.3 mm
- Net weight
- 4.621 g
Height (inches)0.598 inch
Depth (inches)0.878 inch
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984

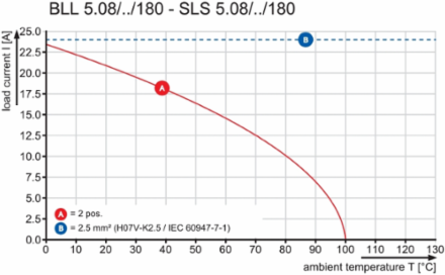

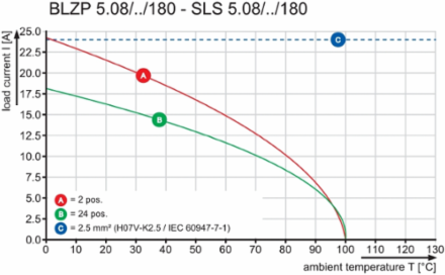

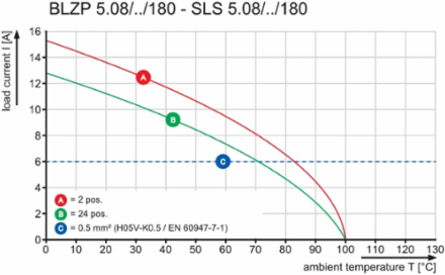

- Rated current, max. number of poles (Tu=20°C)
- 16 A
- Rated current, max. number of poles (Tu=40°C)
- 14 A
- Rated voltage for surge voltage class / pollution degree III/2
- 320 V
- Rated impulse voltage for surge voltage class/ pollution degree II/2
- 4 kV
- Rated impulse voltage for surge voltage class/ contamination degree III/3
- 4 kV
Rated current, min. number of poles (Tu=20°C)21.5 A
Rated current, min. number of poles (Tu=40°C)18 A
Rated voltage for surge voltage class / pollution degree II/2400 V
Rated voltage for surge voltage class / pollution degree III/3250 V
Rated impulse voltage for surge voltage class/ pollution degree III/24 kV
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Insulating material
- PBT
- Comparative Tracking Index (CTI)
- ≥ 200
- UL 94 flammability rating
- V-0
- Contact material
- CuSn
- Layer structure of plug contact
- 4-8 µm Sn hot-dip tinned
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Insulating material groupIIIa
Insulation strength≥ 108 Ω
GWFI960 °C
Contact surfacetinned
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
System Parameters
- Product family
- OMNIMATE Signal - series BL/SL 5.08
- Wire connection method
- Clamping yoke connection
- Pitch in inches (P)
- 0.2 inch
- Number of poles
- 3
- Touch-safe protection acc. to DIN VDE 57 106
- finger-safe plugged/ back-of-hand-safe unplugged
- Can be coded
- Yes
- Tightening torque, min.
- 0.4 Nm
- Clamping screw
- M 2.5
- Screwdriver blade standard
- DIN 5264-A
- Plugging force/pole, max.
- 4 N
Type of connectionField connection
Pitch in mm (P)5.08 mm
Conductor outlet direction180°
Pin series quantity1
Volume resistance4.50 mΩ
Stripping length7 mm
Tightening torque, max.0.5 Nm
Screwdriver blade0.6 x 3.5
Plugging cycles25
Pulling force/pole, max.3 N
Packing
- Packaging
- Box
- VPE width
- 140 mm
VPE length350 mm
VPE height35 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 0.13 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Solid, min. H05(07) V-U
- 0.2 mm²
- Flexible, min. H05(07) V-K
- 0.2 mm²
- w. plastic collar ferrule, DIN 46228 pt 4, min.
- 0.2 mm²
- w. wire end ferrule, DIN 46228 pt 1, min.
- 0.2 mm²
- Plug gauge in accordance with EN 60999 a x b; ø
- 2.8 mm x 2.0 mm; 2.4 mm
- Max. clamping range
- 3.31 mm²
Clamping range, max.3.31 mm²
Wire connection cross section AWG, max.AWG 12
Solid, max. H05(07) V-U2.5 mm²
Flexible, max. H05(07) V-K2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.2.5 mm²
Reference textThe outside diameter of the plastic collar should not be larger than the pitch (P).
Rated Data Acc. To Csa
- Rated voltage (Use group B / CSA)
- 300 V
- Rated current (Use group B / CSA)
- 15 A
- Wire cross-section, AWG, min.
- AWG 26
Rated voltage (Use group D / CSA)300 V
Rated current (Use group D / CSA)10 A
Wire cross-section, AWG, max.AWG 12
