Weidmuller 1846130000 SLS 5.08/04/180TB KF SN OR BX

MPN: 1846130000
PPN: WDM-1846130000

$5.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PCB plug-in connector, male plug, 5.08 mm, Number of poles: 4, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Rated voltage (Use group B / UL 1059)	300 V
Rated current (Use group B / UL 1059)	14 A
Wire cross-section, AWG, min.	AWG 26

Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, max.	AWG 12

Approvals

Approvals	EAC

ROHS	Conform

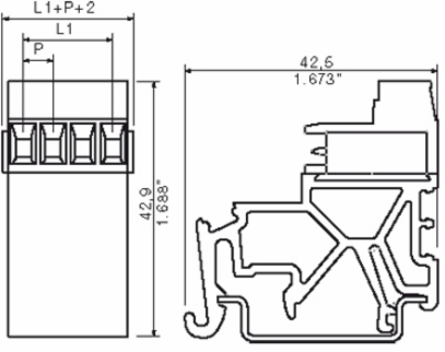

Dimensions And Weights

Height	42.9 mm
Depth	42.5 mm
Net weight	16.6 g

Height (inches)	1.689 inch
Depth (inches)	1.673 inch

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984

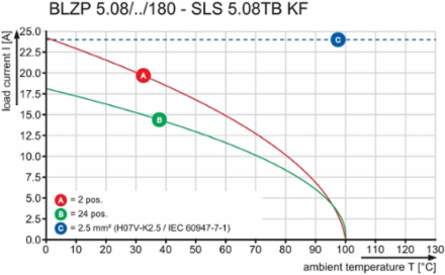

Rated current, max. number of poles (Tu=20°C)	16 A
Rated current, max. number of poles (Tu=40°C)	14 A
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV

Rated current, min. number of poles (Tu=20°C)	21.5 A
Rated current, min. number of poles (Tu=40°C)	18 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV

Material Data

Insulating material	PBT
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	CuSn
Layer structure of plug contact	4-8 µm Sn hot-dip tinned
Storage temperature, max.	55 °C

Colour	orange
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	tinned
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %

Classifications

ETIM 6.0	EC002638
eClass 9.0	27-44-03-09
eClass 10.0	27-44-03-09

ETIM 7.0	EC002638
eClass 9.1	27-44-03-09
UNSPSC	30-21-18-10

System Parameters

Product family	OMNIMATE Signal - series BL/SL 5.08
Wire connection method	Clamping yoke connection
Pitch in inches (P)	0.2 inch
Number of poles	4
L1 in inches	0.6 inch
Pin series quantity	1
Stripping length	7 mm
Tightening torque, max.	0.5 Nm
Screwdriver blade standard	DIN 5264

Type of connection	Field connection
Pitch in mm (P)	5.08 mm
Conductor outlet direction	180°
L1 in mm	15.24 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	finger-safe plugged/ back-of-hand-safe unplugged
Tightening torque, min.	0.4 Nm
Screwdriver blade	0.6 x 3.5
Plugging cycles	25

Packing

Packaging	Box
VPE width	110 mm

VPE length	90 mm
VPE height	130 mm

Notes

Notes	Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Conductors Suitable For Connection

Clamping range, min.	0.13 mm²
Wire connection cross section AWG, min.	AWG 26
Solid, min. H05(07) V-U	0.2 mm²
Flexible, min. H05(07) V-K	0.2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0.2 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0.2 mm²
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P).

Clamping range, max.	3.31 mm²
Wire connection cross section AWG, max.	AWG 12
Solid, max. H05(07) V-U	2.5 mm²
Flexible, max. H05(07) V-K	2.5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	2.5 mm²
Max. clamping range	3.31 mm²
