Weidmuller 2496920000 SM 27/18 MM WS VPE100
- MPN: 2496920000
- PPN: WDM-2496920000
CAD
$1.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

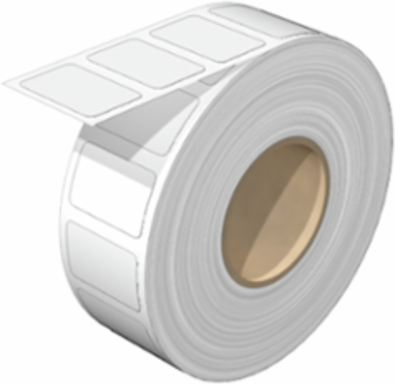

SwitchMark, Device markers, 18 x 27 mm, white
Specifications
Dimensions And Weights
- Width
- 27 mm
- Height
- 18 mm
- Depth
- 0.1 mm
- Net weight
- 0.068 g
Width (inches)1.063 inch
Height (inches)0.709 inch
Depth (inches)0.004 inch
General Data
- Adhesive
- Acrylate adhesive
- Colour
- white
- Material
- Polyester
- Operating temperature range
- -40...120 °C
- Version
- halogen-free, Self-adhesive
- compatible printer
- 2599430000 2599440000
Approval acc. to UL 969Yes
HalogenNo
Number per roll100
UL 94 flammability ratingV-0
Width27 mm
Classifications
- ETIM 6.0
- EC001288
- eClass 9.0
- 27-40-06-29
- eClass 10.0
- 27-40-06-29
ETIM 7.0EC001288
eClass 9.127-40-06-29
Approvals
- ROHS
- Conform
