Weidmuller 1248650000 SM 45/45-24 MC NE WS
- MPN: 1248650000
- PPN: WDM-1248650000
CAD
$1.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

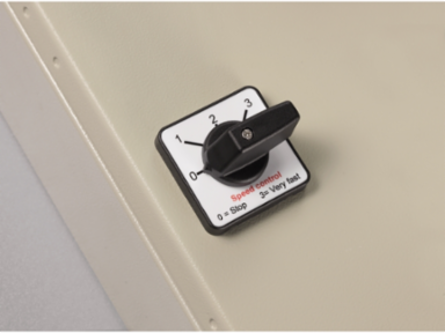

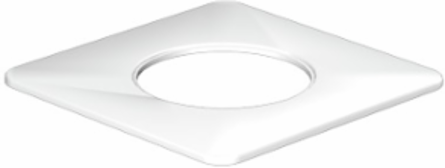

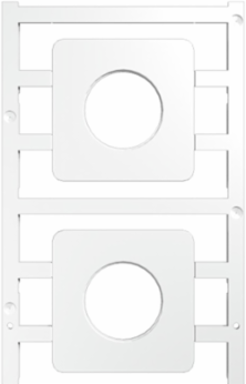

SwitchMark, Device markers, 45 x 45 mm, for cam switches, Eaton Moeller, white
Documentation & Downloads
Specifications
General Data
- Application/manufacturer
- for cam switches, Eaton Moeller
- Halogen
- No
- Material colour according to resistance code
- 9
- UL 94 flammability rating
- V-2
- compatible printer
- 1324380000
Colourwhite
MaterialPolyamide 66
Operating temperature range-40...100 °C
Width45 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 45 mm
- Height
- 45 mm
- Depth
- 1.2 mm
- Net weight
- 5.4 g
Width (inches)1.772 inch
Height (inches)1.772 inch
Depth (inches)0.047 inch
Diameter24 mm
Classifications
- ETIM 6.0
- EC001288
- eClass 9.0
- 27-40-06-29
- eClass 10.0
- 27-40-06-29
ETIM 7.0EC001288
eClass 9.127-40-06-29
Device Markers
- Diameter
- 24 mm
