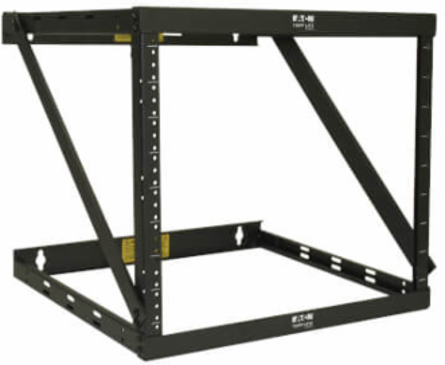

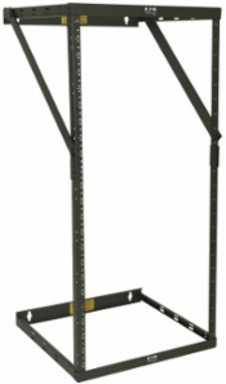

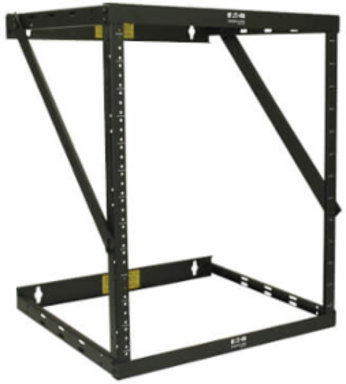

Tripp Lite SRWO8U22 Expandable 2-Post Open Frame Rack 22U, 150 lb Max Load, 18 Inch Depth
- MPN: SRWO8U22
- UPC: 037332156778
- PPN: TRP-SRWO8U22
CAD
$363.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartRack 8U/12U/22U Expandable Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack
Features
- (24) 12-24 equipment mounting screws
- (8) M6 x 12 Phillips-head screws
- (16) M5 x 10 Phillips-head screws
- (2) Short vertical mounting rails
- (2) Long vertical mounting rails
- (2) Mounting rail tie plates
- (2) Top/bottom panel frames
- (2) Support straps
- (8) Zip ties
- 3 mm hex key
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| Maximum Device Depth | 18.24 in |
|---|---|
| Unit Weight Details | Weight varies depending on configuration: 8U = 11.21 lb, 12U = 12.23 lb, 22U = 15.03 lb |
| Rack Type | Open-Frame |
| Assembly Required | Yes |
| Unit Dimensions | 42.300 x 20.110 x 18.240 in |
|---|---|
| Rack Depth | Shallow |
| Device Compatibility | Patch Panel, Network Switch |
Reference
| Product Warranty Period | 5-year limited warranty |
|---|
Performance
| Maximum Weight Capacity | 150 lb |
|---|
Material
| Color | Black |
|---|
