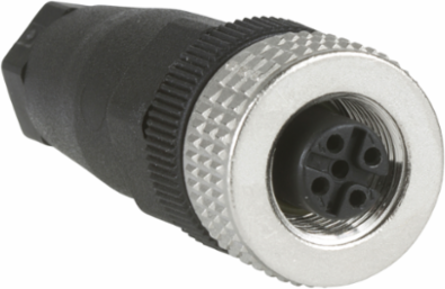

Telemecanique Sensors XZCC12FDM40B Female, M12, 4 pin, straight connector, cable gland Pg 7
- MPN: XZCC12FDM40B
- PPN: TES-XZCC12FDM40B
CAD
$25.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This connector has a straight female 4-pin M12 connector and a screw terminal with metal clamping rings. It is designed for critical installations thanks to the high robustness metallic ring M12 connector.
Documentation & Downloads
Specifications
Key Specifications
- Collar Material
- metal
- Range Of Product
- Telemecanique Cabling components
- Status Led
- without
- Cable Connection
- screw terminal 0.75 mm² 3-6 mm
Electrical Connectionstraight female connector M12, 4 pins
Accessory / Separate Part Categorycabling accessories
Accessory / Separate Part Typeconnector
Complementary
- Minimum Insulating Resistance
- 1000 GΩ
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 3 A
- Net Weight
- 0.02 kg
[Ue] Rated Operational Voltage125 V AC || 150 V DC
Cable Gland TypePg 7
Enclosure Materialplastic
Contact Resistance8000 µOhm
Environment
- Ambient Air Temperature For Operation
- -40-85 °C
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
