Leviton

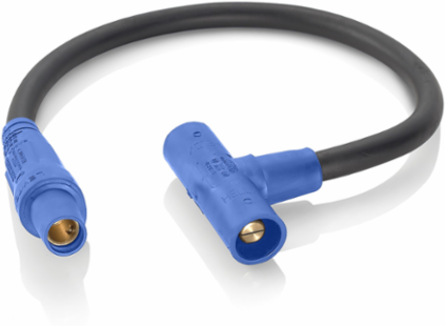

Leviton 16A31-UB Soft Paralleling Tee Adapter, 24 Inch Cable, 400 Amp Max, Blue

  • MPN: 16A31-UB
  • UPC: 078477713402
  • PPN: LEV-16A31-UB

CAD

$292.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

16 Series Taper Nose Cam-Type "Soft" Paralleling 3-Way Tee Adapter, 4/0, Female-Male-Male, 24" Cable Length, 400 Amp Max, 600VAC/DC, Blue

Features

  • Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
  • Single or double set screw or crimp tube termination
  • NEMA 3R rated for outdoor use when mated
  • Designed with cylindrical profile to reduce snap
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
  • Color-coding provides fast and easy phase identification
  • Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico
RoHS CompliantFalse

Standards and Certifications

CSA Standard1691
UL1691, 508 – 35k A / 600V Short Circuit Current Rating
NEMA RatingType 3R

Material Specifications

ContactsBrass
InsulatorSantroprene TPV

Mechanical Specifications

Cable Range4/0
Style NameSoft Paralleling Tee
GenderFemale-Male-Male

Product Features

ColorBlue

Electrical Specifications

Max. Amperage400 Amp
Max. Voltage600 Volt
Soft Paralleling Tee Adapter, 24 Inch Cable, 400 Amp Max, Blue
Soft Paralleling Tee Adapter, 24 Inch Cable, 400 Amp Max, Blue
