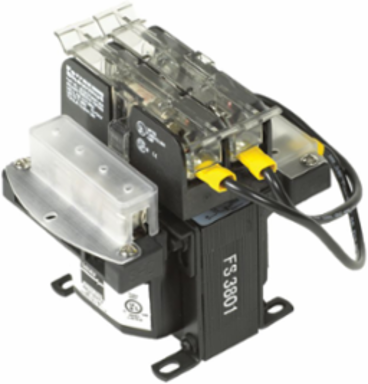

SolaHD E500TF Encapsulated Copper Wound Transformer, 208/240/277 Volt Primary, 120/24 Volt Secondary, 60 Hz
- MPN: E500TF
- PPN: SHD-E500TF
CAD
$505.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SBE Series encapsulated copper wound industrial control transformers are epoxy encapsulated to protect cores and coils against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. With rugged construction and proven reliability, the SBE design is uniquely suited for industrial environments.
Features
- 50/60 Hz +55°C Rise
- +105°C insulation system for harsh, heavy duty applications
Documentation & Downloads
Specifications
Key Specifications
- Group 1
- 120 x 240 Volt Primary, 24 Volt Secondary, 60 Hz; 60, 75, 100, 150, 200, 250, 300, 350, 600, 750 Continuous VA
- Group 3
- 240 x 480 Volt Primary, 24 Volt Secondary, 60 Hz; 50, 100, 250, 500 Continuous VA
- Group 5
- 208/240/480/600 Volt Primary, 120/24 Volt Secondary, 60 Hz; 200/230/460/575 Volt Primary, 115/23 Volt Secondary, 60 Hz; 50, 100, 150, 250, 500 Continuous VA
- KVA Rating
- 50, 60, 75, 100, 150, 200, 250, 300, 350, 500, 600, 750
- Secondary Voltage
- +55°C
- Windings
- Copper
Group 2220 x 440 Volt Primary, 110 Volt Secondary, 50/60 Hz; 230 x 460 Volt Primary, 115 Volt Secondary, 50/60 Hz; 240 x 480 Volt Primary, 120 Volt Secondary, 60 Hz; 50, 75, 100, 150, 200, 250, 300, 350, 500, 750, 1000 Continuous VA
Group 4208/240/277 Volt Primary, 120/24 Volt Secondary, 60 Hz; 50, 100, 250, 500 Continuous VA
Hertz60 Hz, 50/60 Hz
Primary Voltage120 x 240, 220 x 440, 230 x 460, 240 x 480, 200/230/460/575, 208/240/277, 208/240/480/600
Temperature Rise+55°C
MountingSteel Mounting Plate
