SolaHD

SolaHD SCP100S24XDVN1 SolaHD™ SCP-X Series Standalone IP67 Power Supplies - PN SCP100S24XDVN1

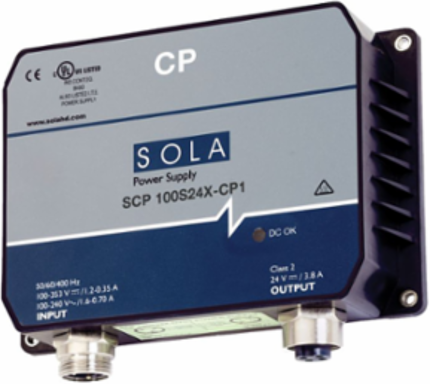

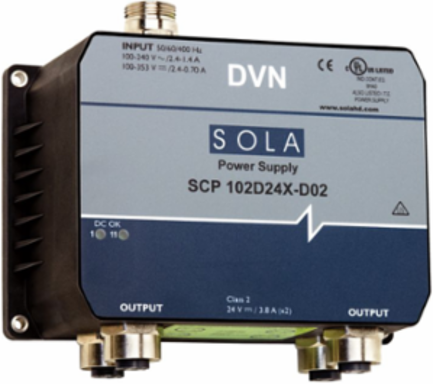

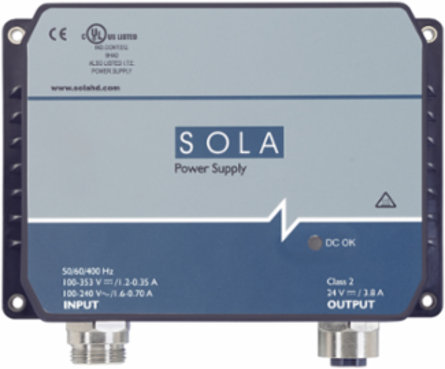

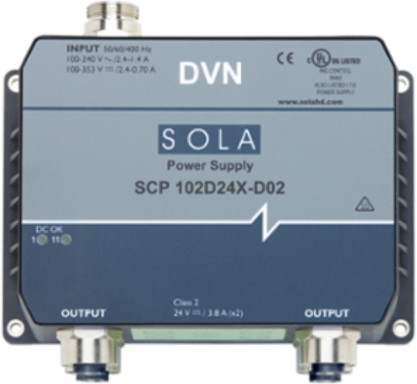

SolaHD™ SCP-X Series Standalone IP67 Power Supplies - PN SCP100S24XDVN1
SolaHD™ SCP-X Series Standalone IP67 Power Supplies - PN SCP100S24XDVN1
  • MPN: SCP100S24XDVN1
  • UPC: 078347287040
  • PPN: SHD-SCP100S24XDVN1

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$750.94/ EA

Description

IP67-rated SCP-X Series power supplies can be mounted almost anywhere on a machine, conveyor, or wall. No enclosure required. Quick-connect cables ensure the IP67 rating and eliminate costly wiring. Available from 100 Watts to 240 Watts.

Features

  • cULus, CE, IP67, Sag Immunity, RoHS
  • IP66/67 rated versatile enclosure
  • 240 Watt continuous output version, with 360 Watt Inductive Load Power Boost for 4 seconds
  • Single and dual 100 Watt Class 2 Listed versions
  • Can be mounted in any orientation without limitation
  • Safety approved for AC and DC universal input
  • DC OK Relay Contact on 240 Watt model
  • DC OK Green LED

Specifications

Specifications

cULus Listed, Ind. Control Equipment
Class 2
Input Voltage Range
86-267 Vac, 100-353 Vdc
Output Voltage Range
24 Vdc
Status Indicator
Visual: Green LED, DC OK
Mounting
Chassis Mount
Frequency50/60/400 Hz
Output Power100 W
Overload Capability25-25.5 Vdc, auto recovery
Number of PhasesSingle
