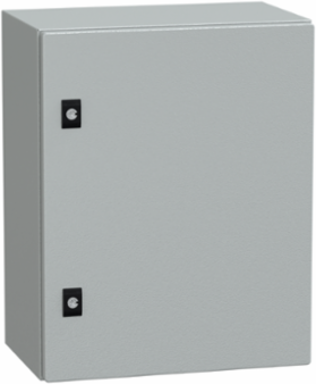

Schneider Electric NSYCRN54250 Spacial CRN Wall-Mount Enclosure 500mm H x 400mm W x 250mm D, IP66, IK10
- MPN: NSYCRN54250
- PPN: SCH-NSYCRN54250
CAD
$268.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

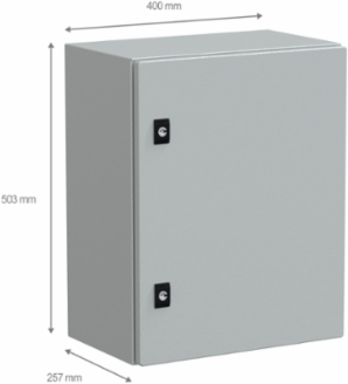

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 400 mm x (H) 500 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 500 mm, 500 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width400 mm, 400 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cable gland plate, 1 door, 1 lock
- Certificate Agency
- UL, cUL, DNV-GL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 22 kg CO2 eq., 21.664434779607483
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 45 kg CO2 eq., 44.90036254810221
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Door Opening Side
- reversible 120 °)
- Energy Efficiency Optimized
- False
- Material
- body steel
- Number Of Doors
- front face 1
- Product Name
- PanelSeT CRN
- Range
- PanelSeT
- Software Version
- v6.1
- Sustainable Packaging
- No
- Type Of Gland Plate
- standard
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 98
- Package Weight(Lbs)
- 9.196 kg
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hinges, cable gland plate by screws
Carbon Footprint Of The Distribution Phase [A4]18.257027398508882, 18 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.8117687443841497, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Door TypeSolid
Lock Type3 mm double-bar lock
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecompact enclosure
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint87 kg CO2 eq.
Pep CodeENVPEP1001004EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint86.63359347060273
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1001004EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
