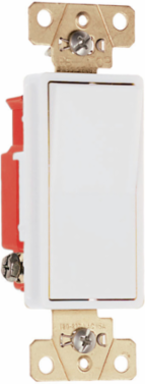

Pass & Seymour 2621W 20A 120V/277V Single Pole Decorator Paddle Switch, White, 1.3 Inch Width
- MPN: 2621W
- UPC: 785007539356
- PPN: P-S-2621W
CAD
$41.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A 120V/277V Single Pole Decorator Paddle Switch, White, 1.3 Inch Width
Features
- Impact-resistant polycarb back body and frame.
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
- Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
- Terminals made of high conductivity brass and serrated for maximum wire gripping.
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
- Integral auto-ground clip for positive ground to metal boxes.
- Tri-drive ground, terminal, and mounting screws.
- All terminal screws backed out, ready-to-install.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.06 in |
|---|---|
| Type | Switch |
| Load Type | CFL |
| Country of Origin | Mexico |
| Type | Decorator |
| Load Type | Xenon |
| Voltage | 277 VAC |
| Number of Gangs | 1 |
| Load Type | Universal |
| Load Type | Fluorescent |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Features | Decorator Style |
| Number of Poles | Single Pole |
| Application Sector | Industrial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 140.0 °F |
| Operating Temperature | -20°-60°C |
| Color | White |
| Material | Thermoplastic |
| Special Features | Unique single rocking butterfly contact, back & side wire |
| Height | 4.2 in |
|---|---|
| Width | 1.3 in |
| Load Type | LED |
| Standard | UL 20 |
| Amperage | 20.0 A |
| Voltage | 120 VAC |
| Load Type | Halogen |
| Switch Type | Paddle |
| Indoor/Outdoor | Indoor |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Throw Type | Single Throw |
| Requires Neutral Wire | No |
| Application Sector | Commercial |
| Load Rating | 20 A @ 120/277 VAC |
| Wire Connection Type | Screw Terminals |
| Operating Temperature Min | -4.0 °F |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Operating Temperature | -4°-140°F |
| Finish | Matte |
| Product Line | Pass & Seymour |
