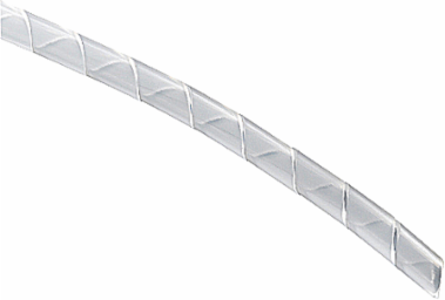

Catamount SRPE-1000F-9-C Forward Cut Spiral Wrap 1.0 Inch OD, Polyethylene, 100 Feet Roll
- MPN: SRPE-1000F-9-C
- UPC: 728494090290
- PPN: T-B-SRPE-1000F-9-C
CAD
$341.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Forward Cut Spiral Wrap, Natural Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Outside Diameter of 25.4mm (1.0 Inches), Pitch of 28.19mm (1.11 Inches), Nominal Wall Thickness of 1.78mm (0.07 Inches), 30.48m Reel (100 Feet)
Features
- Perfect for protection of bundles from .063 to 7 inch diameters.
- Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
- Available in 3 materials.
- Application Tools: SR-100
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131604 Spiral wrapping
- Brand Name
- Catamount
- Special Features
- Perfect for protection of bundles from .063 to 7 inch diameters.
- Outside Diameter
- 1.000
- Minimum Bundle Diameter
- 1.000
- Material
- Polyethylene
IGCC5395 Spiral wrapping
TypeSpiral Wrap
ColorNatural
Maximum Bundle Diameter7.000
Pitch1.110
Wall Thickness0.070
European Specifications (ETIM)
- ETIM
- EC002604 Cable bundle hose
- Nominal diameter
- 25.4mm
- Material quality
- Polyethylene
- Transparent
- N
- Wall thickness
- 1.78mm
ModelSpiral hose
MaterialPlastic
ColourNatural colour
Fire resistant propertiesAccording to UL94 HB
Packaging
- Outer Quantity
- 1
- Weight Uom
- 10.65 lbs. Each
Outer Dimensions (inches)36x36x36
