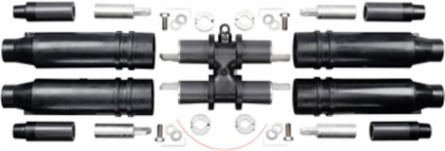

Thomas & Betts K656CH-K0290 SPLICE KIT,4WAY,600A DB,15/25KV

MPN: K656CH-K0290
UPC: 783786845156
PPN: T-B-K656CH-K0290
UNSPSC: 39121421

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 15/25kV, Separable H Joint Kit, 4-Way with Test Point. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 300 /Compacted Solid 350 /mmSquared Compact 150.

Specifications

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	Compact Design is suitable for Small Vaults and Manholes.
Color	Black
Current Rating	600 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Overall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20090724
Includes	1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Insstallation Instructions
Material	Housing - EPDM Rubber
Product Type	Deadbreak Separable H-Joint Assembly
Special Functions	Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
Temperature Range	-40 to +65 °C
