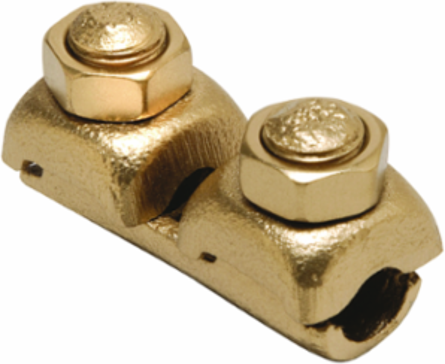

QIKLINKTM Splice/Reducer Connector, 1-15/16 Inch Length, 11/16 Inch Width, Copper Alloy

QIKLINKTM Splice/Reducer Connector, 1-15/16 Inch Length, 11/16 Inch Width, Copper Alloy - https://images.province-electric.com/BUR-366415/splice-or-reducer-qiklink-medium-alt-pdkm.webp

Documentation & Downloads

Burndy QR1C QIKLINKTM Splice/Reducer Connector, 1-15/16 Inch Length, 11/16 Inch Width, Copper Alloy

MPN: QR1C
UPC: 781810334157
PPN: BUR-366415

CAD

$106.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Splice or Reducer Qiklink, 4 Str. - 1 Str., 1-15/16 in L, 11/16 in W.

Documentation & Downloads

Specifications

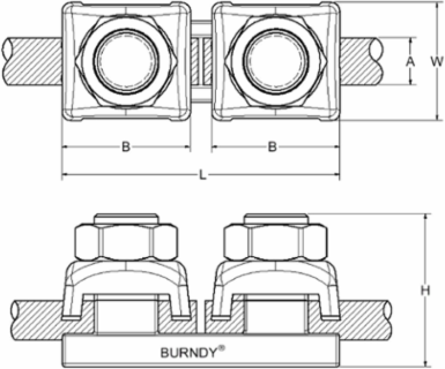

Dimensions

Dimension - B Length fraction: 7/8 in

Dimension - Height fraction: 1-1/16 in

Dimension - L Length Overall mm: 49 mm

Dimension - Width fraction: 11/16 in

Dimension - Width mm: 18 mm

Dimension - B Length inch0.88 in

Dimension - Height inch1.06 in

Dimension - Length Overall inch1.94 in

Dimension - Width inch0.69 in

Certifications and Compliance

Certification - CSA Approved: No

Certification - UL Recognized: No

Industry Standard(s): UL468A-468B

Standards - RoHS Compliance Status: EX

Certification - ETLNo

Certification - cULusNo

Standards - Industry Standards MetUL468A-468B

UL ListedYes

Conductor Related

Conductor - Copper Solid Size A: 4 AWG;3 AWG;2 AWG;1 AWG

Conductor - Copper Solid Size B: 4 AWG;3 AWG;2 AWG;1 AWG

Conductor - Copper Str Size A: 4 AWG;3 AWG;2 AWG;1 AWG

Conductor - Copper Str Size B: 4 AWG;3 AWG;2 AWG;1 AWG

Conductor - Copper Solid Size A Range4 AWG-1 AWG

Conductor - Copper Solid Size B Range4 AWG-1 AWG

Conductor - Copper Str Size A Range4 AWG-1 AWG

Conductor - Copper Str Size B Range4 AWG-1 AWG

General

Application: For Joining A Range Of Copper Cable End To End

Installation Torque Recommended in-lb: 150 LBS/in

Physical Attribute - Number of Screws: 2

Plated: N

Sub Brand: QIKLUG

Type: QR

Connector TypeSplice;Reducer

MaterialCopper Alloy

Physical Attribute - Screw TypeHexagonal Bolt

Plating TypeUnplated

Trade NameQIKLINK™

UPC781810334157

Logistics

Minimum Pack Quantity: 1
