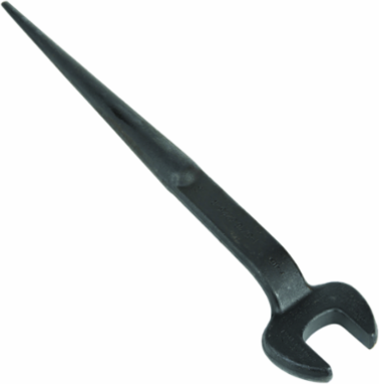

Klein Tools 3223 Spud Wrench 1-5/16 Inch Opening for 7/8 Inch Bolts, Alloy Steel Construction
- MPN: 3223
- UPC: 092644680182
- PPN: KLT-3223
- UNSPSC: 27111714
CAD
$107.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

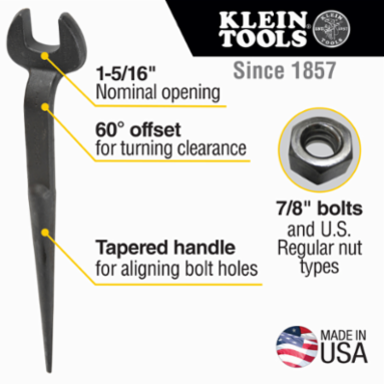

Forged from select alloy steel, the Klein Tools 1-5/16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 7/8-Inch bolts and U.S. regular nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.
Features
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area gives maximum strength and durability
- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes better than other wrenches

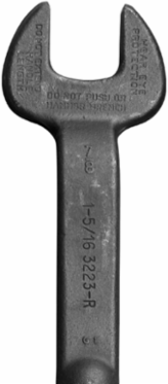

- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- American Bridge design
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Taper Diameter
- 1-1/8" to 9/32" (2.9 to 0.7 cm)
- Type
- Spud Wrench
- Nominal Opening
- 1-5/16" (3.3 cm)
- Material
- Alloy Steel
- Regular Nut Size
- 7/8" (2.2 cm)
- Overall Height
- 2.5 cm (1 Inch)
- Overall Width
- 3 Inch (7.6 cm)
- Height
- 1.0000 in
- Depth
- 17.3750 in
Offset Angle60°

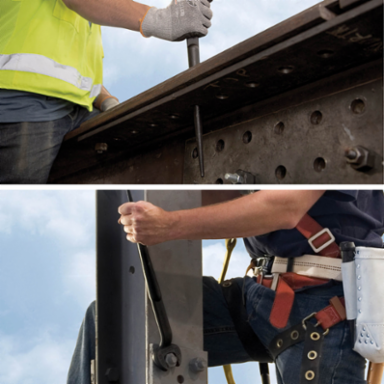

ApplicationConnecting Steel Members
Nut TypeU.S. Regular
FinishBlack Oxide with a Rust Preventative
Square Nut Size7/8" (2.2 cm)
Head Width7.6 cm (3 Inch)

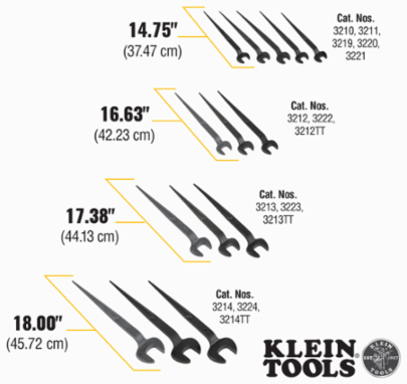

Overall Length17.375 Inch (44.1 cm)
Width3.0000 in
Weight2.8700 lbs
