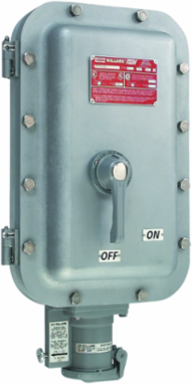

Killark VBQ1023SN70 100A Mechanically Interlocked Receptacle 2W3P, 1-1/2" Hub Size
- MPN: VBQ1023SN70
- UPC: 783936018980
- PPN: HBL-VBQ1023SN70
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D - FAL Series 100A Receptacle 70A Breaker 2W3P
Features
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Ground Fault Options Available
- Spacious wiring room that meets NEC wire bending requirements.
- Adjustable mounting lugs
- Quick Release Cover Bolts with Triple Leads for faster removal
- Electrostatically applied polyester/epoxy finish
- Breaker Handle has provisions for locking “ON” or “OFF” with up to three Padlocks
- Killark VersaMate® VBQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks). Integral circuit breaker allows for local circuit protection (Square D and Cutler-Hammer options available).
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 1-1/2" |
| Nema Rating | 3, 4, 4X, 7(B, C, D), 9(F, G) |
| Number Of Wires | 3 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | SQD/FAL 100AREC 70ABRK 2W3P |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | VBQ Series |
| BOX SIZE | (in) |
| NAICS Code | 335931A133 |
| Hazardous Rating(s) | Class I, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2 |
|---|---|
| Amperage Rating | 100 A |
| Number Of Poles | 2 |
| Type | Pin & Sleeve |
| Class Code | D35 |
| Freight Class Code | 06316011 |
| Image Actual Or Representative | A |
| Sub Class Code | D35D260 |
| Hub Pattern | Dead-End |
| Receptacle Type | Mechanically Interlocked |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936018980 |
