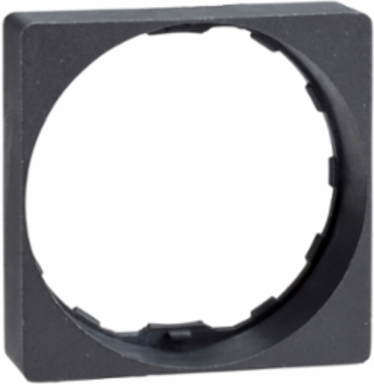

Schneider Electric ZB5AZ31 Harmony XB5 Square Trim Add-On for 22 mm Circular Head, Black
- MPN: ZB5AZ31
- PPN: SCH-ZB5AZ31
- UNSPSC: 39122216
CAD
$1.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB5, black add-on square trim is used to give a square appearance to circular head. This add-on square trim is designed as a simple way to give a square appearance to ZB5A circular heads and is clearly distinguishable visually at a distance thanks to its clear color. It is compatible with Harmony XB5. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 3 g |
|---|
Important Information Attributes
| Customizable | 0, no |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.0010475837, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0007909997, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 24 % |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony XB5 |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Database Version | 2022-01 |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Product Or Component Type | square trim, square trim |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0054214012 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0 kg CO2 eq., 0.0223392994 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2303008EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Average Percentage Of Recycled Metal Content | 12 % |
| Device Application | gives square appearance to ZB5A circular head |
| Quantity Per Set | set of 10 |
| Returnability | No |
| Sustainable Packaging | Yes |
| Main Color Tint | black |
| Data Source | extrapolated product |
| Accessory / Separate Part Destination | circular head |
| Customs Code | 8538908180 |
| Functional Unit Description | XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch s primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 29 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 12 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0295992841 |
| Environmental Disclosure | ENVPEP2303008_V1 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | ZB5A |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2303008EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303008_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | square trim, square trim |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC002036 |
|---|---|
| ETIM 10 | EC002036 |
| ETIM 9 | EC002036 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
