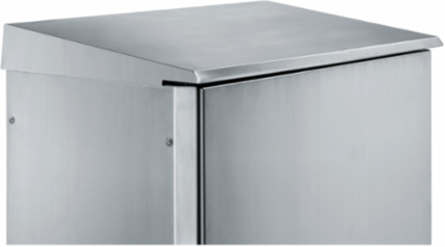

Schneider Electric NSYSCX16040 Stainless Steel Canopy 304L 1648 mm Width, Scotch-Brite Finish, 17 kg
- MPN: NSYSCX16040
- PPN: SCH-NSYSCX16040
CAD
$1293.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Stainless steel canopy with Scotch-Brite finish for Spacial SFX/SMX. Enclosures W is1600 x D is400 mm. Multi-purpose enclosure accessory. Mounting on top of enclosure. Fixing by elements, same holes as the eyebolts location. Stainless steel 304L, Scotch-Brite brushed finish.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 64.88 in
Height3.31 in
Depth449 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 canopy, fixing elements
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Fixing Mode
- by fixing element - same holes as the eyebolts
- Mounting Location
- on top of enclosure
- Product Or Component Type
- canopy
- Range
- PanelSeT
- Surface Finish
- Scotch-Brite® brushed
- Thickness
- 1.5 mm
- Height Nominal
- 84 mm
- Width Nominal
- 1648 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 13.340 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Materialstainless steel 304L
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP2107011EN
Height Useful84 mm
Width Real1648 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2107011EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2107011EN
General Attributes
- Product Or Component Type
- canopy
ETIM
- ETIM 8
- EC000744
ETIM 9EC000744
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
