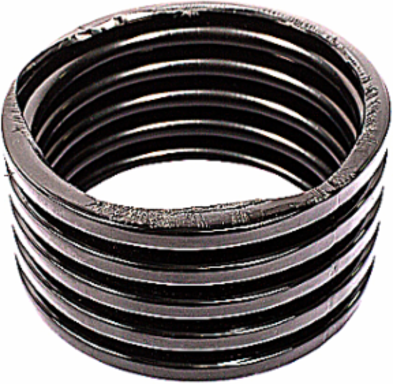

Adaptaflex PACS34/BL/100FT 34mm Standard Weight Conduit, Coarse Pitch, Black, 100 Feet
- MPN: PACS34/BL/100FT
- UPC: 786210241166
- PPN: T-B-PACS34/BL/100FT
CAD
$567.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Standard Weight Conduit, Nominal Conduit Size 34mm, NW Conduit Size 29, Coarse Conduit Pitch, Outside Diameter 34.5mm, Inside Diameter 27.7mm, Static Bend Radius 60mm, Reel Length 100 Feet, Polyamide (Nylon) 6, Black
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 34.5mm
- Material
- Polyamide 6
- Degree of protection (IP)
- IP68
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Approved according to DIN EN 61386-23
- Y
- Approved according to LUL/British Standard
- Y
- Approved according to NF F 16-101
- Y
Nominal diameter34mm
Inner diameter27.7mm
Operating temperature-40-+120°C
Fire resistance in accordance with UL94V2
ColourBlack
Bending strengthFlexible
Halogen freeY
Approved according to URY
Approved according to Lloyd's Register TAY
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- High Fatigue Life, Self Extinguishing, Halogen Free
- Trade Size
- 34mm
- Inside Diameter
- 27.7mm
- Radius
- 60mm
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeStandard Weight Conduit with Coarse Pitch
ApplicationIndoors / Outdoors - Light Industrial, Buildings & Machinery
Outside Diameter34.5mm
Length100 ft
FlexibilityHigh
ColorBlack
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity1
Weight Uom9.08 lbs. Each
