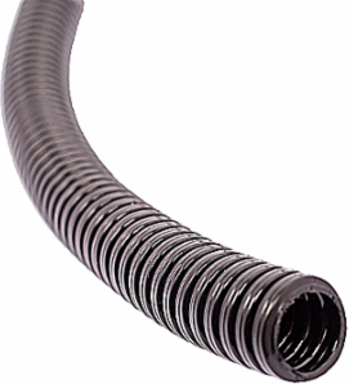

Harnessflex NC25/50M Standard Weight Conduit
Harnessflex NC25/50M Standard Weight Conduit
- MPN: NC25/50M
- UPC: 5020963023064
- PPN: T-B-NC25/50M
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$479.98/ EA
Description
Standard Weight, General Purpose Conduit, NC Size 25/NW Size 22, Outside Diameter 25.6mm, Inside Diameter 21.3mm, Static Bend Radius 40mm, High Flexibility and Fatigue Life, IP40 Rating, Polyamide 6, Reel Length 50 Meters, Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- 3/4 inch
- Inner diameter
- 21.3mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- HB
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
Nominal diameter25mm
Outer diameter25.6mm
MaterialPolyamide 6
Degree of protection (IP)IP40
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Harnessflex
- Application
- Extensively Used in Harnesses on HGV and off Road Vehicles Applications Where Superior Protection Against Impact and Mechanical Shock is Preferred. The Conduit is Used for Both Chassis and Engine Applications and Can Be Used in a Wide Range of Temperatures
- Trade Size
- NC25/NW22
- Inside Diameter
- 21.3mm
- Radius
- Static Bend Radius 40mm
- Material
- Polyamide/Nylon 6
IGCC5540 Flexible Non-Metallic Conduit
TypeStandard Weight Conduit
StandardADR Approved, RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
Outside Diameter25.6mm
Length50 m
FlexibilityVery High
ColorBlack
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 8
- Weight Uom
- 8.32 lbs. Each
Inner Dimensions (inches)24.5x24.5x50
Outer Dimensions (inches)48x40x50
