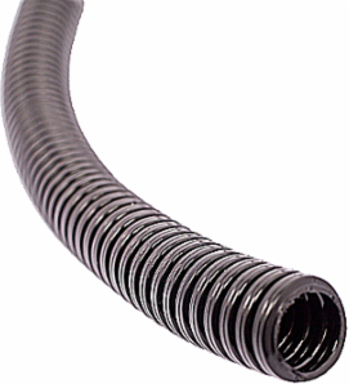

Harnessflex NC28/50M Standard Weight Conduit

MPN: NC28/50M
UPC: 786210146935
PPN: T-B-NC28/50M

$543.70

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Standard Weight, General Purpose Conduit, NC Size 28/NW Size 23, Outside Diameter 28.5mm, Inside Diameter 22.6mm, Static Bend Radius 45mm, High Flexibility and Fatigue Life, IP40 Rating, Polyamide 6, Reel Length 50 Meters, Black

Specifications

North American Specifications (UNSPSC)

UNSPSC	39131706 Electrical conduit
Brand Name	Harnessflex
Application	Extensively Used in Harnesses on HGV and off Road Vehicles Applications Where Superior Protection Against Impact and Mechanical Shock is Preferred. The Conduit is Used for Both Chassis and Engine Applications and Can Be Used in a Wide Range of Temperatures
Trade Size	NC28/NW23
Inside Diameter	22.6mm
Radius	Static Bend Radius 45mm
Material	Polyamide/Nylon 6

IGCC	5540 Flexible Non-Metallic Conduit
Type	Standard Weight Conduit
Standard	ADR Approved, RoHS, Conforms with End of Life Vehicle Directive (ELV)EU200/53/EC
Outside Diameter	28.5mm
Length	50 m
Flexibility	Very High
Color	Black

European Specifications (ETIM)

ETIM	EC001175 Corrugated plastic hose
Outer diameter	28.5mm
Material	Polyamide 6
Degree of protection (IP)	IP40
UV resistant	Y
Sheathing material	Not sheathed
Lengthwise slotted	N

Nominal diameter	28mm
Inner diameter	22.6mm
Operating temperature	-40-+120°C
Fire resistance in accordance with UL94	HB
Colour	Black
Bending strength	Flexible
Halogen free	Y
