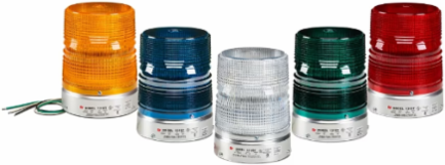

Federal Signal 131DST-012-024R Starfire Double Strobe Light, UL and cUL, 12-24VDC, Red
- MPN: 131DST-012-024R
- UPC: 782979285311
- PPN: FDS-131DST-012-024R
- UNSPSC: 39111706
CAD
$1114.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Federal Signal's Starfire® strobe warning lights are available in single-flash (131ST) and double-flash (131DST) models.The base of the light is made of corrosion-resistant, anodized aluminum. Each Starfire model comes with a standard1/2-inch NPT pipe mount. An optional surface mount kit can be ordered.Because of its convenient size and intense light output, the Starfire strobes can be used for multiple applications.Excellent for in-plant use, Models 131ST and 131DST warn of hazardous conditions, mark dangerous areas (either permanently or temporarily), and mount on lift trucks, cranes, and other moving devices.
Features
- Available in 12-24 Vdc, 120 Vac, and 240 Vac
- Five lens colors: Amber, Blue, Clear, Green and Red
- 10,000-hour strobe tube
- Single- or double-flash strobe options
- 1/2-inch NPT pipe mount
- Indoor/Outdoor use
- Conformal coated PCBA
- Type 3 enclosure (dome up orientation)
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 7.75 in
- Body Color
- Silver
- Candela Power Peak
- 1000000
- Flash Pattern Type
- Double Flash Strobe
- Availability
- Ships in 10 Business Days
- Mount Type
- 1/2-Inch NPT Pipe
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Flash Pattern
- Double Flash Strobe
- Visual Signals Operating Voltage
- 12-24VDC
- Lead Time
- Ships in 10 Business Days
Width5.7 in
Weight2 lbs
Candela Effective Power1200
Certification ListingCSA, UL, cUL
Flashes Per Minute80
Lens ColorRed
Operating Current Amps3.0-1.9
Operating Voltage12-24 Vdc
Visual Signals Lens ColorRed
Environmental RatingOrdinary Location
Product Life Cycle StatusCompleted
