Blackburn SWC235A11290 STD FLEX BRAID 4H NEMA 1290MM LONG
- MPN: SWC235A11290
- UPC: 075114374842
- PPN: T-B-SWC235A11290
- UNSPSC: 39121465
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

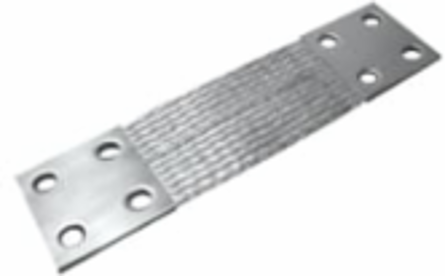

Tinned Copper, Standard Flexible Braid Connector, SWC Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 50.78 inch (1290 mm) long, 3 inch (76.2 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand.
Specifications
Additional Information
| Application | Switchgear and Transformer Links |
|---|---|
| Cable Length | 1290 mm |
| Conductor Shape | Flat |
| Material of Conductor | Copper |
| Product Type | Standard Flexible Braid Connector - 4-Hole |
| Standards | IEEE / ANSI C37, C34 1994 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Flexible |
| Effective Date | 20180613 |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | 4-Holes Pads each End. 30 AWG Individual Strand |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
