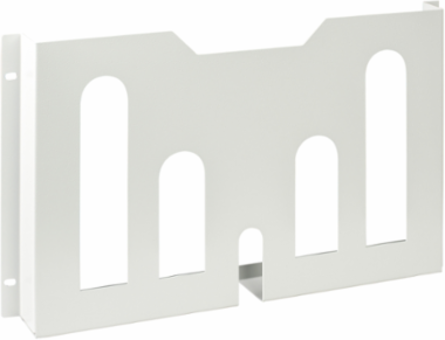

Schneider Electric NSYSDP8M Document Pocket, 800 mm Width, Adjustable Height, Steel, Grey RAL 7035
- MPN: NSYSDP8M
- PPN: SCH-NSYSDP8M
- UNSPSC: 39121321
CAD
$86.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Spacial metal document pocket. Width is 800 mm. Mounting on door reinforcement frame. Direct mounting support. Adjustable in height, steps of 25 mm for door. Steel made, painted surface finish. Grey RAL 7035.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Depth | 65 mm |
| Weight | 2120 g |
|---|
Physical Attributes
| Color | door Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 x metal document pocket, 1 x fixing element |
| Carbon Footprint Of The Distribution Phase A4 | 0.408096365, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.470076065, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-12-11 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable in height, steps of 25 mm door |
| Energy Efficiency Optimized | False |
| Material | door steel |
| Mounting Support | direct mounting |
| Product Or Component Type | document pocket |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Height Nominal | nominal: 282 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | No |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 5 kg CO2 eq., 4.98379692 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 9.211651147 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | door accessories |
| Fixing Mode | direct fixing - door |
| Mounting Location | on door reinforcement frame |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Surface Finish | painted |
| Total Lifecycle Carbon Footprint | 15 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | nominal: 800 mm |
| Customs Code | 7326908688 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | No |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Carbon Footprint | 15.0736205 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | document pocket |
|---|
ETIM
| ETIM 8 | EC000317 |
|---|---|
| ETIM 10 | EC000317 |
| ETIM 9 | EC000317 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
