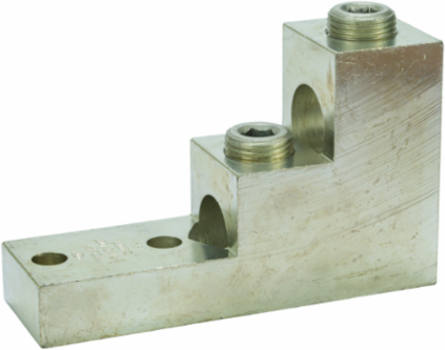

NSI Industries 600T-2 Step Panel Lug 600-2
- MPN: 600T-2
- PPN: NSI-600T-2
- UNSPSC: 39121466
CAD
$81.96
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2 Port Stacked Lug 600 MCM - 2 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
Features
- Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 1.5 in |
| Collection Folder | 600T-2 |
| MATERIAL | 6061T-6 Aluminum Alloy |
| WARRANTY | 1 Year |
| Field Application | Terminate |
| INNER WEIGHT | 1.91 |
| FINISH | Tin Plated |
| Max Temperature | 90 C |
| VOLTAGE RATING | 600 V |
| Product Assortment | Aluminum Mechanical Terminations |
| Number of Conductors/Circuits/Terminals | 2 |
| Tang Thickness | 0.75 IN |
| Wire Range | 600 MCM - 2 AWG |
| Mounting Hole Position | 0.38 IN |
| Hex Wrench Size | 8-Mar IN |
| Length | 4.91 in |
|---|---|
| Height | 3 in |
| NPD Date Electrical | 2010-04-06T00:00:00.000Z |
| INNER HEIGHT | 2.35 |
| Division | Electrical H1 |
| UL File # | E155027 |
| INNER WIDTH | 4.35 |
| INNER LENGTH | 5.85 |
| Sub-Division | Electrical-E H2 |
| PRODUCT FAMILY | Connectivity |
| Product Series | T2 |
| Future Plan | Rebrand as Polaris |
| Conductor Type | Copper, Aluminum |
| Tang Width | 1.5 IN |
| Hole Spacing | 1.38 IN |
| Tang Length | 2.34 IN |
