Thomas & Betts K655LRTP-L0320-DRG Stick Op Reducing Tap Plug Connector
- MPN: K655LRTP-L0320-DRG
- UPC: 783786361106
- PPN: T-B-K655LRTP-L0320-DRG
CAD
$1465.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

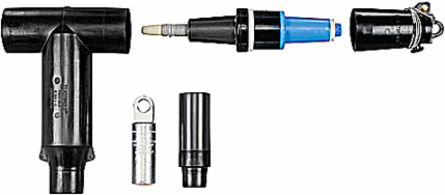

600 Amp Elbow Connector, Stick Op Connector Kit, 25KV, Dead Break, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 450 /Solid 500/550.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow. |
| Standard | ANSI/IEEE Standard 386 |
| Material | Housing - EPDM Rubber |
| Enclosure | Yes, EPDM Rubber |
| Amperage Rating | 600/200 Amps |
| Temperature Rating | -40 degrees to +65 degrees Celsius |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Stick Op Reducing Tap Plug Connector |
| Application | Connect 600 Amp interface to 200 Amp Loadbreak Tap |
| Conductor Range | Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550. |
| Color | Black |
| Voltage Rating | 25kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 8.5 lbs. Each |
| Outer Dimensions (inches) | 13.5x9.25x8.5 |
|---|
