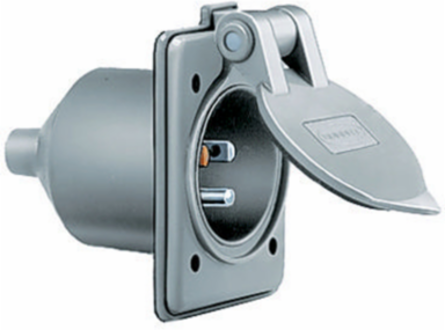

Hubbell Wiring Device-Kellems HBL61CM64 Weatherproof Marine Male Inlet 15A 125V 2-Pole 3-Wire 1.47 Inch x 1.32 Inch
- MPN: HBL61CM64
- UPC: 783585808659
- PPN: HBL-HBL61CM64
- UNSPSC: 39121406
CAD
$132.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Inlets, Weatherproofed, Marine, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, Gray, Single Pack.
Features
- Weatherproof flip lid
- Weatherproof boot covers terminals
- Multiple drive screws
- Nickel plated brass blades
- Corrosion Resistant
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- Current / Amperage Rating
- 15 A
- Height
- 1.47 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E1706
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Marine Wiring Devices
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Corrosion Resistant
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.32 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- MARINE HULL INLET, 15A 125V, 5-15P, GY
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A04A010
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 9.400x17.000x9.800 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585808659
- Case Weight
- 9.379 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.000 in
- Pallet Weight
- 209.000 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions1.47 in x 1.32 in x 1.47 in
Horsepower - Maximum0.50
Length1.47 in
Amperage Rating15 A
ColorJaune
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating5-15P
Number of Wires3-Wire
Size1.47 in x 1.32 in x 1.47 in
StandardCertified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E1706
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.25 lb.
ConnectivityScrew Terminals
Nema Rating5-15P
Number Of Wires3-Wire
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number61CM64
Cord Range0.230"-0.360" (5.8-18.3)
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585808658
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
