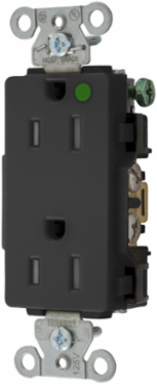

Hubbell Wiring Device-Kellems 2172BKTRA Hospital Grade Tamper Resistant Duplex Receptacle, 15A 125V, 2-Pole, 3-Wire, 1.57 Inch x 3.28 Inch
Hubbell Wiring Device-Kellems 2172BKTRA Hospital Grade Tamper Resistant Duplex Receptacle, 15A 125V, 2-Pole, 3-Wire, 1.57 Inch x 3.28 Inch
- MPN: 2172BKTRA
- UPC: 783585541778
- PPN: HBL-2172BKTRA
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$34.68/ EA
Description
Straight Blade Devices, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black
Features
- Tamper-resistant shutter complies with national electrical code requirements
- Triple wipe contacts
- High impact resistant decorator face
- Steel mounting strap
- Tamper Resistant, USA Product
Specifications
Specifications
- Country of Origin
- MX
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Height
- 1.15 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Application
- Hubbell-Pro Heavy Duty Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Tamper Resistant, USA Product
- Type
- Duplex Receptacle
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.57 in
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Style Line decorator
- Description - Invoice
- HUBBELL-PRO HG DECO 15A/125V TR BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A040
- Current Rating
- 15 A
- Series
- Hubbell-Pro
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585541778
- Case - Total Units
- 100 EA
Current / Amperage Rating15 A
Each - Width1.910 in
Horsepower - Maximum0.5
Length3.28 in
Amperage Rating15 A
ColorBlack
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.57 in x 1.15 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired Screw Terminals
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2172BKTR
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight20.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
