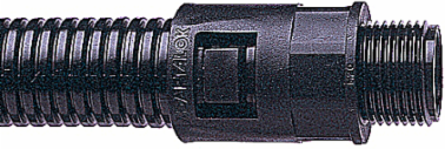

Adaptaflex AL16/PG11/A/BL Conduit Fitting with PG Threads 16mm, IP66, Polyamide, Black
- MPN: AL16/PG11/A/BL
- UPC: 786210279435
- PPN: T-B-AL16/PG11/A/BL
CAD
$4.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 16mm, PG11 Thread, Polyamide (Nylon) 66, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with PG Threads
SizeNC 16mm
ColorBlack
Cable EntryPG11 Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- PG11
- Total length
- 21.7mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter16mm
ModelStraight
Construction typeExternal thread
Thread typeOther
Thread length10mm
Total height43mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 300
- Weight Uom
- 1.43 lbs. per 100
Inner Dimensions (inches)1.8x1.6x1.7
Outer Dimensions (inches)1.8x1.6x1.7
