Documentation & Downloads

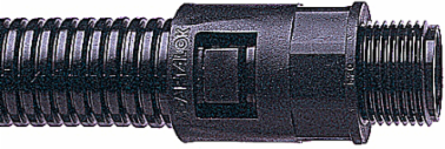

Adaptaflex AL54/M50/A/BL Straight Conduit Fitting 54mm, M50 Metric Thread, IP66, Polyamide
- MPN: AL54/M50/A/BL
- UPC: 786210281087
- PPN: T-B-AL54/M50/A/BL
CAD
$26.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 54mm, M50 Thread, Polyamide (Nylon) 66, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 54mm
ColorBlack
Cable EntryM50 Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M50 x 1.5
- Total length
- 67.2mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter54mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
Thread length16mm
Total height69mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
Packaging
- Inner Quantity
- 2
- Outer Dimensions (inches)
- 14x14x6
Outer Quantity40
Weight Uom0.19 lbs. Each
