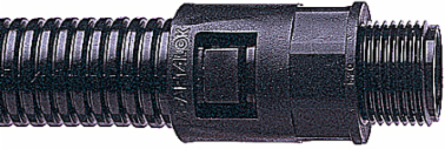

Adaptaflex AL16/M16/A/BL Conduit Fitting M16 Thread 16mm, Polyamide, IP66 защитa
- MPN: AL16/M16/A/BL
- UPC: 786210279350
- PPN: T-B-AL16/M16/A/BL
CAD
$5.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Conduit Fitting, Fixed Male External Thread, Nominal Conduit Size 16mm, M16 Thread, Polyamide (Nylon) 66, Black
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 400
- Weight Uom
- 1.61 lbs. per 100
Inner Dimensions (inches)1x7x6
Outer Dimensions (inches)15x13x14
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 16mm
ColorGray
Cable EntryM16 Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M16 x 1.5
- Total length
- 23.4mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter16mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
Thread length11.5mm
Total height44.5mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
