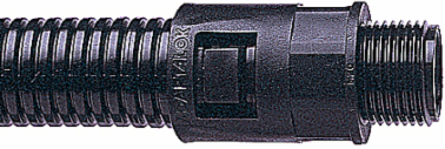

Adaptaflex AL34/M32/A/BL Panel Mounting Flange, 34mm Nominal Size, M32 Thread, IP66, Black Polyamide
- MPN: AL34/M32/A/BL
- UPC: 786210280547
- PPN: T-B-AL34/M32/A/BL
CAD
$9.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Conduit Fitting, Panel Mount Flange, Fixed External Male Thread, Nominal Conduit Size 34mm, M32 Thread, Polyamide (Nylon) 66, Black
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M32 x 1.5
- Total length
- 41.5mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter34mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
Thread length16mm
Total height53.8mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypePanel Mounting Flange
SizeNC 34mm
ColorBlack
Cable EntryM32 Thread
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 100
- Weight Uom
- 0.15 lbs. Each
Inner Dimensions (inches).75x1.6x2.1
Outer Dimensions (inches)14x14x6
