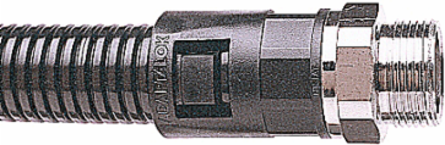

Adaptaflex AL21/PG16/SA/BL Conduit Fitting with PG16 Threads, 21mm, Polyamide, IP66
- MPN: AL21/PG16/SA/BL
- UPC: 786210279862
- PPN: T-B-AL21/PG16/SA/BL
CAD
$32.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 21mm, PG16 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread, Black
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- PG16
- Total length
- 27mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter21mm
ModelStraight
Construction typeExternal thread
Thread typeOther
Thread length11.2mm
Total height59.9mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with PG Threads
SizeNC 21mm
ColorBlack
Cable EntryPG16 Thread
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 100
- Weight Uom
- 0.09 lbs. Each
Inner Dimensions (inches)2.2x1.9x2.2
Outer Dimensions (inches)2.2x1.9x2.2
