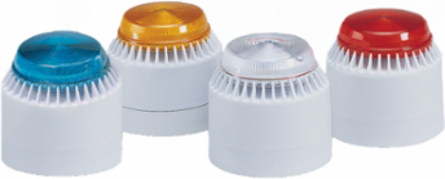

Federal Signal LP7-18-30B StreamLine Sounder Strobe Light, Audible Visual, CE Compliant, 18-30VDC, Blue
- MPN: LP7-18-30B
- UPC: 782979216568
- PPN: FDS-LP7-18-30B
- UNSPSC: 39111706
CAD
$361.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The LP7 sounder/strobe combines the features of a mini sounder with a fully integrated xenon strobe light.Operating voltage ranges from 18-28 Vdc with an average of only 68 mA current consumption.The LP7 has two switchable tone patterns: "Sweeping" and "Continuous." The LP7 has a range of 82-100 dBA at 10 feet(92-110 dBA at 1 m), depending on the tone selected. Volume control is set by a DIP switch, which allows for 20 dBA of adjustment.The LP7 features a bright xenon strobe that produces 0.7 joules of flash energy with a flash frequency of 60 flashes per minute. The beacon will operate jointly with any tone selected.The Federal Signal Model LP7 sounder/strobe is PLC compatible. It is ideal for wall or panel mount applications where low voltage is required.
Features
- Available in 18–28 Vdc
- Fully integrated xenon strobe circuit
- Four lens colors: Amber, Blue, Clear, and Red
- Heavy duty ABS plastic body
- 82–100 dBA at 10' (92–110 dBA at 1 m)
- IP54 (IP65 with optional deep base)
- CE and UKCA compliant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.69 lbs
- Certification Listing
- CE
- dBa 10 Ft
- 82 to 100
- Flashes Per Minute
- 60
- Lens Color
- Blue
- Operating Current Amps
- 0.068
- Operating Voltage
- 12-28 Vdc
- Environmental Rating
- Ordinary Location
- Lead Time
- In Stock - Ships in 2 Bus Days
Height3.5 in
Body ColorWhite
dBa 1 Meter92 to 110
Diameter3.66 in (92.964 mm)
AvailabilityIn Stock - Ships in 2 Bus Days
Mount TypeSurface
Operating Temp.14˚ to +131˚F (-10˚ to +55˚C)
Visual Signals Lens ColorBlue
Enclosure RatingIP54, IP65
Product Life Cycle StatusCompleted
