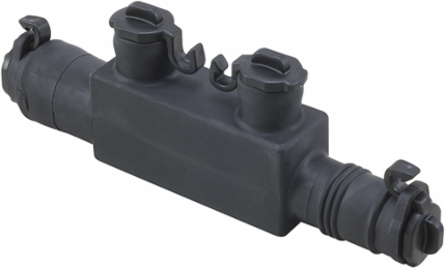

Ilsco USPA-1/0SSP-DB Streetwise Street Light Connector, Dual Rated, Direct Bury, Conductor Range 1/0-14, 1 Port Line Side, 1 Port Load Side, UL, With De-Ox
Ilsco USPA-1/0SSP-DB Streetwise Street Light Connector, Dual Rated, Direct Bury, Conductor Range 1/0-14, 1 Port Line Side, 1 Port Load Side, UL, With De-Ox
- MPN: USPA-1/0SSP-DB
- UPC: 0783669941166
- PPN: ILC-USPA-1/0SSP-DB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$55.73/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Drive Size Main
- 3/16
- Height BX (IN)
- 2
- Width BX (IN)
- 6.188
Drive Type MainInternal Hex
Weight BX (LB)0.651
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL/cUL 486D Listed
CSA StandardC22.2 No. 198.2
UL Control Number88X4
UL File NumberE125087
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Ports Tap
- 1
Contains DE-OX®Yes
Number of Poles2
Number of Ports / Wireways2
Material and Finish
- Conductor Material
- Copper, Aluminum
- Insulation
- TPE (thermoplastic elastomer)
- Wire Binding Hardware Finish
- Tin
Connector FinishTin
MaterialAluminum
Wire Binding Hardware MaterialAluminum
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 10 Str - 14 Str
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 10 Str - 14 Str
Conductor Range AL Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 0
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
UPC Code78366994116
Specifications
- Height
- 5.63 in
- Weight
- 0.168 lbs
Length1.925 in
Width0.93 in
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Screw Size3/8
Color
- Color
- Black
Environment and Temperature
- Temperature Rating
- 90°C
Water tightYes
