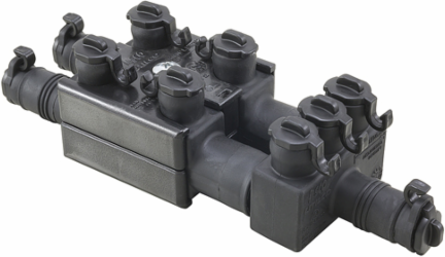

ILSCO STL12-1/0SS10P Streetwise Street Light Connector, Dual Rated, Line Conductor Range 1/0-14, Load Range 10-14, 1 Port Line Side, 2 Ports Load Side, UL, CSA, With De-Ox
- MPN: STL12-1/0SS10P
- UPC: 783669011487
- PPN: ILC-STL12-1/0SS10P
CAD
$236.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Streetwise Street Light Connector, Dual Rated, Line Conductor Range 1/0-14, Load Range 10-14, 1 Port Line Side, 2 Ports Load Side, UL, CSA, With De-Ox
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.057 in | 52.2478 mm |
|---|---|
| Weight | 0.605 lbs |
| Length | 7.517 in | 190.9318 mm |
|---|---|
| Width | 2.492 in | 63.2968 mm |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 3/16 |
|---|---|
| Height BX (IN) | 2.75 |
| Length (mm) | 190.9318 |
| Width BX (IN) | 5 |
| Drive Type Main | Internal Hex |
|---|---|
| Height (mm) | 52.2478 |
| Weight BX (LB) | 0.7706 |
| Width (mm) | 63.2968 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL ECIS Listed (Special Purpose Connector - tested to UL 486D, UL 498) |
| CSA Standard | C22.2 No. 198.2 |
|---|---|
| UL Control Number | E479772 |
| UL File Number | E479772 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 3 |
| Number of Ports Tap | 2 |
| Replacement Part(s) | BP10, R7188C00A - PLUG, WIRE SEAL, R7189C00A - ROCKET SEAL |
| Contains DE-OX® | Yes |
|---|---|
| Number of Poles | 1 |
| Number of Ports / Wireways | 3 |
| Type of Accessory | NFL3, NFL24, NFL6 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Insulation | TPE (thermoplastic elastomer) |
| Wire Binding Hardware Finish | Tin |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
Conductor Ranges
| Conductor Range AL Solid (Secondary, tap, load) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Stranded (Secondary, tap, load) | 10 Str - 14 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 10 Sol - 14 Sol |
| Conductor Range CU Stranded (Secondary, tap, load) | 10 Str - 14 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
|---|---|
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
| Conductor Range CU Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-4 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366901148 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|
| Wire Binding Screw Size | 3/8 |
|---|
Color
| Color | Black |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
| Water tight | Yes |
|---|
