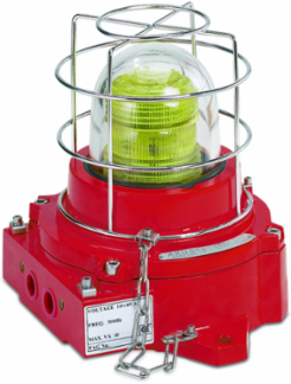

Strobe Light, Explosion-Proof, 24VDC, IECEx/ATEX, Zone 1 ExdIIBT4, Lens Sold Separately (XEN4D4BNO)
Federal Signal

Federal Signal XEN4D4BNO Strobe Light, Explosion-Proof, 24VDC, IECEx/ATEX, Zone 1 ExdIIBT4, Lens Sold Separately (XEN4D4BNO)

  • MPN: XEN4D4BNO
  • UPC: 782979218821
  • PPN: FDS-XEN4D4BNO
  • UNSPSC: 39111706

CAD

$3561.89

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Federal Signal's 2000 Series Models XEN1 and XEN4 xenon beacons are visual warning lights for uses that require ATEX approval. Model XEN1 is a strobe light that contains a single xenon flashing tube. This makes it ideally suited for use in indoor, explosion-proof areas that require compliance to European electrical safety directives.Model XEN4 is a strobe light that utilizes four strobe tubes, timed in a sequential manner, to simulate the operation of a mechanical rotating beacon. This four-strobe version is ideal in outdoor situations where a conventional beacon may not be adequate.Flameproof strobe lights are sealed from dust and water by a nitrile rubber o-ring seal. All exterior cast aluminum surfaces are finished in powder coat paint, and external hardware is manufactured from stainless steel to resist corrosion.The 2000 Series beacon is externally powered by a DC or AC power source. Screw-type terminal blocks are provided for field wiring on all units.All variations of the 2000 Series beacon feature a four-entry fixture to allow cable looping. These cable entries are metric (M20 X 1.5), but other configurations are available upon request.

Features

  • Single- and four-strobe tube models
  • Internal fresnel lens (sold separately)
  • Six lens colors: Amber, Blue, Clear, Green, Red and Yellow
  • Ex de terminal chamber available
  • IP66 enclosure
  • Approved for use in Zone 1, 2, 21, 22 Atmospheres
  • Corrosion resistant powder coat finish
  • Stainless steel external hardware
  • ATEX, IECEx and CE Certified

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Height
9.84 in
Weight
13.23 lbs
Certification Listing
ATEX, CE, IECEx
Mount Type
Surface
Operating Voltage
24 Vdc
Enclosure Rating
IP66
Product Life Cycle Status
Completed
Width10.04 in
Depth8.23 in
Body ColorRed
AvailabilityIn Stock - Ships in 2 Bus Days
Operating Temp.-40˚ to +158˚F (-40˚ to +70˚C)
Environmental RatingExplosion-Proof
Lead TimeIn Stock - Ships in 2 Bus Days
