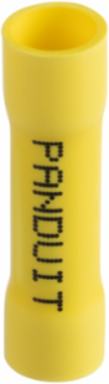

Panduit ESV10BX-Q StrongHold™ ESV10BX-Q Butt Splice, Yellow, Vinyl, 1.22", 12-10 AWG, PK25
- MPN: ESV10BX-Q
- UPC: 074983279784
- PPN: PAN-ESV10BX-Q
- UNSPSC: 39121409
CAD
$0.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
StrongHold ESV10BX-Q Contractor Grade Vinyl Insulated Butt Splices are a reliable and economical option that withstand a wide range of general-purpose applications. They are designed to splice two solid or stranded wires together to repair or lengthen wires. Accommodates 12-10 AWG, are yellow in color, and come in packages of 25.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Overall Length (mm) | 31 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Barrel Type | Funnel Entry |
| Finish/Coating | Tin-Plated |
| CSA Temperature Rating (°C) | 105 |
| Wire Strip Length (In.) | 5/16 |
| Base Material | Copper |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Voltage (kV) | 0.3 |
| Any Reason Not to Sell | N |
|---|---|
| Barrel Length (mm) | 30 |
| Insulation Material | Vinyl |
| Wire Strip Length (mm) | 7.9 |
| Product Type | Butt Splice |
| Barrel Length (In.) | 1.18 |
| Maximum Voltage (V) | 300 |
| Color Code | Yellow |
| Overall Length (In.) | 1.22 |
| Sub Brand | StrongHold™ |
| Copper Conductor Size | 12-10 AWG |
Packaging Details
| UPC | 07498327978 |
|---|---|
| Standard Package Volume Ft3 | 0.0103 |
| Std Package Height In | .9 |
| Std Package Length In | 4.45 |
| Std Package Width In | 3.05 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 25 |
| Standard Carton Volume Ft3 | 0.1031 |
| Std Carton Height In | 4.35 |
| Std Carton Length In | 9.1 |
| Std Carton Width In | 4.35 |
| Std Ctn Qty | 250 |
| EAN | 00074983279784 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
| GTIN Package | 00074983279784 |
|---|---|
| Standard Package Weight Pounds | 0.0500 |
| Std Package Height MM | 22.86 |
| Std Package Length MM | 113.03 |
| Std Package Width MM | 77.47 |
| UOM EA PK | PK |
| GTIN Carton | 50074983279789 |
| Standard Carton Weight Pounds | 0.5000 |
| Std Carton Height MM | 110.49 |
| Std Carton Length MM | 231.14 |
| Std Carton Width MM | 110.49 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 250.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
