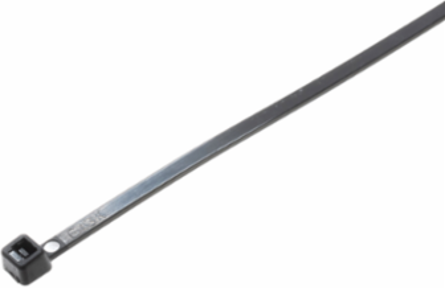

Panduit S7-50-C0 StrongHold™ S7-50-C0 Cable Tie, Black, PA 6.6, 50lb Min Loop Tensile, 7.4"
Panduit S7-50-C0 StrongHold™ S7-50-C0 Cable Tie, Black, PA 6.6, 50lb Min Loop Tensile, 7.4"
- MPN: S7-50-C0
- UPC: 613056258020
- PPN: PAN-S7-50-C0
- UNSPSC: 39121703
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.08/ EA
Description
The S7-50-C0 StrongHold Cable Ties offers contractors an economical cable tie option for commercial construction and general-purpose applications. Standard, 7.4” (188mm) length and are AH-2 Plenum rated. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
Specifications
Packaging Details
- UPC
- 61305625802
- Standard Package Volume Ft3
- 0.0207
- Std Package Height In
- 1.55
- Std Package Length In
- 10.15
- Std Package Width In
- 5.1
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.2072
- Std Carton Height In
- 5.75
- Std Carton Length In
- 9.8
- Std Carton Width In
- 9.7
- Std Ctn Qty
- 1000
- EAN
- 00613056258020
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 160,000
- Pallet Weight
- 436.8000
GTIN Package00613056258020
Standard Package Weight Pounds0.2730
Std Package Height MM39.37
Std Package Length MM257.81
Std Package Width MM129.54
UOM EA PKPK
GTIN Carton50613056258025
Standard Carton Weight Pounds2.7300
Std Carton Height MM146.05
Std Carton Length MM248.92
Std Carton Width MM246.38
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Restricted Use of Hazardous SubstancesN
Min Order Qty1,000.0000
Pallet Volume33.145255
RoHS CompliantCompliant
Specifications
- Country of Origin
- Thailand, China
- Product Segment
- IEI
- Product Type
- Cable Tie
- Minimum Operating Temperature (°C)
- -40
- Overall Length (In.)
- 7.4
- Sub Brand
- StrongHold™
- Overall Length (mm)
- 188
- Body Width (In.)
- 0.19
- Color
- Black
- Minimum Bundle Diameter (mm)
- 3
- Minimum Operating Temperature (°F)
- -40
- Maximum Operating Temperature (°C)
- 85
- Maximum Operating Temperature (°F)
- 185
Any Reason Not to SellN
Maximum Bundle Diameter (In.)1.81
Maximum Bundle Diameter (mm)46
Resistance PropertiesUV-Resistant
MaterialNylon 6.6
Minimum Bundle Diameter (In.)0.12
Minimum Loop Tensile Strength (N)222
Minimum Loop Tensile Strength (lb)50
Body Thickness (In.)0.051
EnvironmentPlenum
Body Width (mm)4.8
Body Thickness (mm)1.3
Material DescriptionNylon 6.6 (UV-Resistant)
