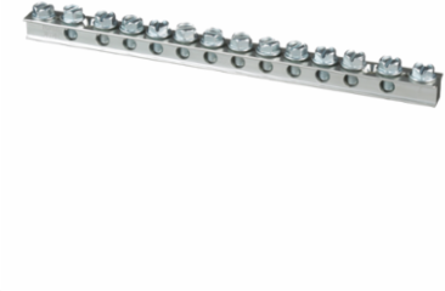

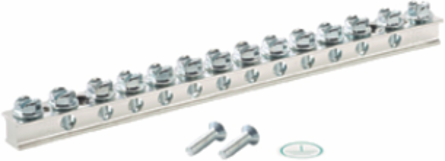

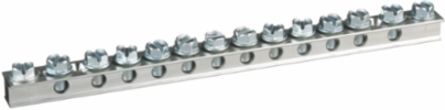

Panduit UGB2/0-414-12 StructuredGround™ UGB2/0-414-12 Universal Grd Bar, Silver, Copper, Tin-Plated
- MPN: UGB2/0-414-12
- UPC: 074983402236
- PPN: PAN-UGB2/0-414-12
- UNSPSC: 46182103
CAD
$80.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The UGB2/0-414-12 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 – #4 AWG wire in 12 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States, Mexico |
|---|---|
| Product Segment | IEI |
| Material | Copper |
| Mounting Hole Width (mm) | 5.7 |
| Overall Height (mm) | 12.2 |
| Overall Length (In.) | 8.28 |
| Overall Width (mm) | 15.7 |
| Overall Height (In.) | 0.48 |
| Overall Length (mm) | 210.3 |
| Compatible Conductor Size | 14-4 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Sub Brand | StructuredGround™ |
| Overall Width (In.) | 0.62 |
| Finish/Coating | Tin-Plated |
| Number of Ports | 12 |
| Color | Silver |
| Product Type | Grounding Busbar |
| Application | Control Panel |
| Mounting Hole Width (In.) | 5.73 |
| Compatible Wire Gauge | 4 AWG |
Packaging Details
| UPC | 07498340223 |
|---|---|
| Standard Package Volume Ft3 | 0.0073 |
| Std Package Height In | 1.4 |
| Std Package Length In | 9.65 |
| Std Package Width In | 2.25 |
| Std. Pkg. UOM | Kit |
| Std. Pkg. Qty. | 1 |
| Standard Carton Volume Ft3 | 0.0729 |
| Std Carton Height In | 4.85 |
| Std Carton Length In | 10.45 |
| Std Carton Width In | 6.55 |
| Std Ctn Qty | 10 |
| EAN | 00074983402236 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 2,900 |
| Pallet Weight | 1,635.6000 |
| GTIN Package | 00074983402236 |
|---|---|
| Standard Package Weight Pounds | 0.5640 |
| Std Package Height MM | 35.56 |
| Std Package Length MM | 245.11 |
| Std Package Width MM | 57.15 |
| UOM EA PK | EA |
| GTIN Carton | 50074983402231 |
| Standard Carton Weight Pounds | 5.6400 |
| Std Carton Height MM | 123.19 |
| Std Carton Length MM | 265.43 |
| Std Carton Width MM | 166.37 |
| Min. Order UOM | Kit |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 3.0000 |
| Pallet Volume | 21.145833 |
| RoHS Compliant | Compliant |
