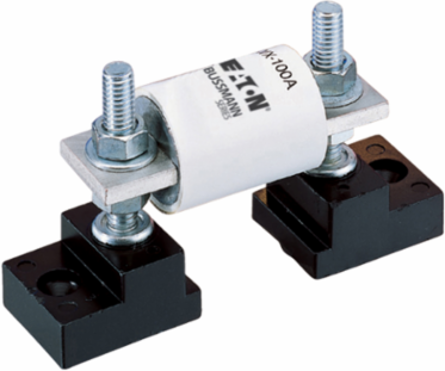

Bussmann C5268-1 Stud Type Fuse Base 3 Inch Length, 2 Inch Height, 1 Inch Width, 0.365 LB Weight
- MPN: C5268-1
- UPC: 051712632010
- PPN: BUS-C5268-1
CAD
$20.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stud Type Fuse Base 3 Inch Length, 2 Inch Height, 1 Inch Width, 0.365 LB Weight
Features
- This modular block comes equipped with a rugged, integrated 5/16"-18 TPI (threads per inch) threaded mounting stud that features a full 1-inch total height clearance. The standard industrial thread pitch and extended stud height give you the physical clearance needed to stack heavy-gauge wire lugs and semiconductor fuses cleanly, ensuring tight, vibration-resistant torquing that prevents arc flash hazards.
- Measuring a compact 3 inches long, 1 inch wide, and 2 inches high, this ultra-streamlined, modular profile occupies minimal rail or backpan real estate. Its low-profile, single-pole footprint allows for dense sub-panel clustering or multi-phase expansion without exceeding tight dimensional constraints in localized machinery junction boxes.
- Specifically tailored as a high-speed connector-type component, this stud-mount base is optimized for specialized fast-acting semiconductor fuses. The precision-threaded stud design prevents improper pairing with standard industrial fuses, safeguarding your sensitive power electronics from costly damage due to mismatched protective components.
Documentation & Downloads
Specifications
Additional
- Amperage
- 200A
- Height
- 2 in
- Weight
- 0.365 lb
- Compliance
- RoHS Compliant
Length3 in
Width1 in
Thread Size5/16 in-18 TPI
