Weidmuller 1850930000 SU 10.16HP/07/180SF 3.5AG BK BX

MPN: 1850930000
PPN: WDM-1850930000

$14.04

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

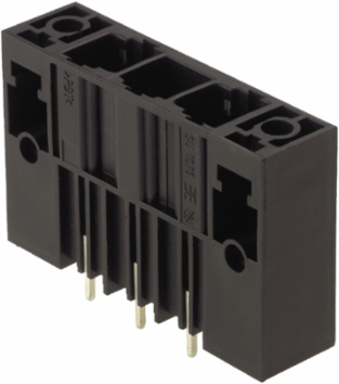

PCB plug-in connector, male header, Screw/clip-on flange, THT solder connection, 10.16 mm, Number of poles: 7, 180°, Solder pin length (l): 3.5 mm, silver-plated, black, Box

Documentation & Downloads

Specifications

Rated Data Acc. To Ul 1059

Institute (cURus)	cURus
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group C / UL 1059)	60 A
Clearance distance, min.	8.9 mm
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Certificate No. (cURus)	E60693
Rated voltage (Use group C / UL 1059)	300 V
Rated current (Use group B / UL 1059)	60 A
Rated current (Use group D / UL 1059)	5 A
Creepage distance, min.	10.5 mm

Approvals

Approvals	cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Net weight	37.15 g

Rated Data Acc. To Iec

tested acc. to standard	IEC 60664-1, IEC 61984
Rated current, max. number of poles (Tu=20°C)	67.9 A
Rated current, max. number of poles (Tu=40°C)	61.3 A
Rated voltage for surge voltage class / pollution degree III/2	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV
Clearance, min.	8.9 mm

Rated current, min. number of poles (Tu=20°C)	78.3 A
Rated current, min. number of poles (Tu=40°C)	70.6 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	690 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Short-time withstand current resistance	3 x 1s mit 1000 A
Creepage distance, min.	10.5 mm

Material Data

Insulating material	PBT GF
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Copper alloy
Layer structure of solder connection	3- µm Ag
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour	black
Insulating material group	IIIa
Insulation strength	≥ 108 Ω
GWFI	960 °C
Contact surface	silver-plated
Layer structure of plug contact	3- µm Ag
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02
UNSPSC	30-21-18-10

Packing

Packaging	Box
VPE width	95 mm

VPE length	40 mm
VPE height	325 mm

System Specifications

Product family	OMNIMATE Power - series BU/SU 10.16HP
Mounting onto the PCB	THT solder connection
Pitch in inches (P)	0.4 inch
Number of poles	7
Solder pin length (l)	3.5 mm
Tolerance of solder pin position	± 0.1 mm
Solder pin dimensions = d tolerance	+0.1 / -0.1 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm

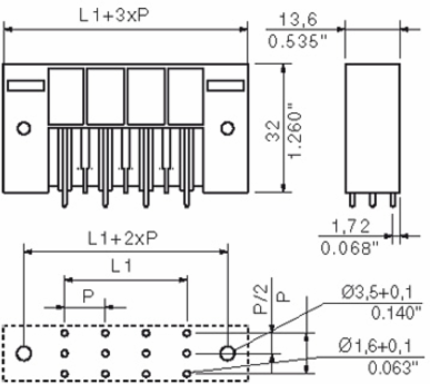

L1 in inches	2.4 inch
Pin series quantity	1
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged
Can be coded	Yes
Tightening torque for screw flange, max.	0.4 Nm

Type of connection	Board connection
Pitch in mm (P)	10.16 mm
Outgoing elbow	180°
Number of solder pins per pole	3
Solder pin length tolerance	+0.1 / -0.3 mm
Solder pin dimensions	1.2 x 1.1 mm
Solder eyelet hole diameter (D)	1.6 mm
L1 in mm	60.96 mm
Number of rows	1
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch, plugged
Volume resistance	2.00 mΩ
Tightening torque for screw flange, min.	0.3 Nm
Plugging cycles	≤ 50

Notes

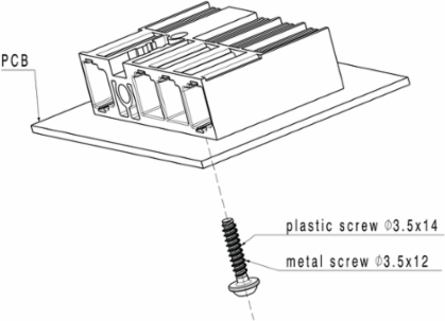

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
