Leviton MLT08-2W0 Submeter Mini Meter MMU 8 X 200A Large with Integrated HDPM and Modhopper

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

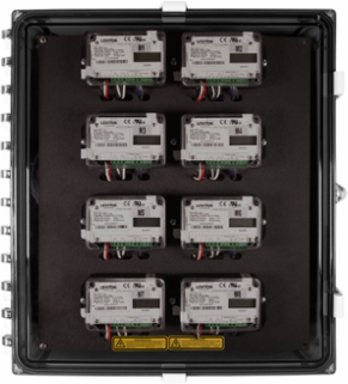

Mini Meter MMU - Large Enclosure, 8 Meters with Integrated HDPM+MH

Suitable for both new construction and retrofit applications, Mini Meter (kWh) MMUs are available in 3 sizes:
Medium: Houses 2 to 4 Mini Meters
Large: Houses 5 to 8 Mini Meters
Extra-Large: Houses 9 to 20 Mini Meters

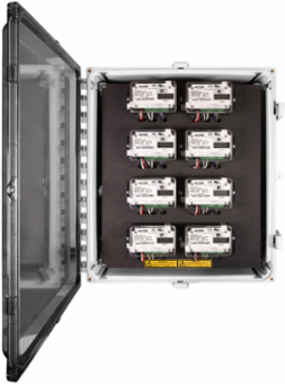

Clear door allowing visibility to meter LCD
All wiring is done behind the front panel
No custom configuration form required
Basic panels are pre-configured with the following options:
Terminals only for meter pulse outputs
Integrated A8911 High Density Pulse Module (HDPM)
Integrated R9120 Modhopper Wireless Transceiver (MH)
Integrated A8810/A7810 Data Acquisition Server (DAS)
VerifEye™ Mini Meter™ Configured Multiple Meter Units (MMUs) are designed for multi-tenant submetering applications in which multiple single phase (120/240V 1PH 3W and 120/208V 2PH 3W) loads are fed from the same power distribution panel to be metered. Each VerifEye Mini Meter installed in an MMU is a revenue-grade*, ANSI C12.20-compliant energy meter that is backed by Leviton’s best in the industry 5-year warranty. Mini Meter MMUs are NEMA 4X rated and UL Listed, suitable for either indoor or outdoor installations. Each Mini Meter has built-in pulse outputs for connection to a High Density Pulse Module, Wireless AMR Transceiver, or a Data Acquisition Server with pulse inputs.
