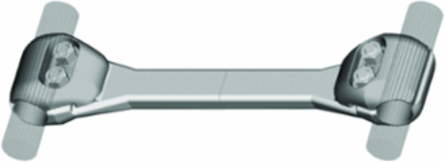

Burndy S2GBP45A12B2 Rigid Spacers for Substation Connectors, 13.84 Inch Length, 4 Inch Width, Aluminum Alloy
- MPN: S2GBP45A12B2
- UPC: 781810270875
- PPN: BUR-26001309
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Substation Connectors
Specifications

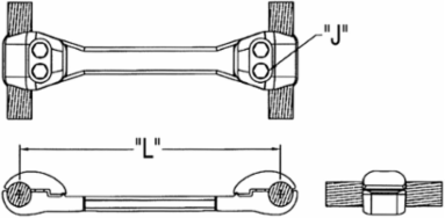

Dimensions
| Dimension - B Length inch | 4.00 in |
|---|---|
| Dimension - L Length Overall mm | 352 mm |
| Dimension - Width inch | 4.00 in |
| Dimension - Height inch | 2.58 in |
|---|---|
| Dimension - Length Overall inch | 13.84 in |
| Dimension - Width mm | 102 mm |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | EX |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - ACSR Str Size | 795 (54/7) Condor kcmil;795 (26/7) Drake kcmil;795 (30/19) Mallard kcmil;874.5 (54/7) Crane kcmil |
|---|---|
| Conductor - AL Str Size | 954 kcmil |
| Conductor - ACSR Str Size Range | 795 (54/7) Condor kcmil-874.5 (54/7) Crane kcmil |
|---|---|
| Conductor - AL Str Size Range | 954 kcmil |
General
| Application | Substation |
|---|---|
| Material | Aluminum Alloy |
| Plating Type | Unplated |
| UPC 12 Digit | 7818102708755 |
| Connector Type | Spacer |
|---|---|
| Plated | N |
| UPC | 781810270875 |
Logistics
| Minimum Pack Quantity | 1 |
|---|
