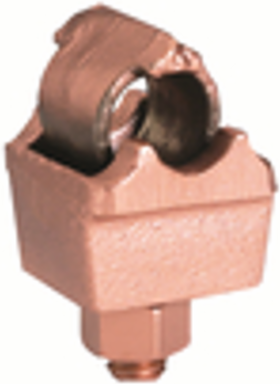

Burndy QGFL46B1 Copper Alloy Bus Bar Clamp, 2-1/2 Inch Width, 4 Inch Height, 1000-1500 kcmil
- MPN: QGFL46B1
- UPC: 781810005842
- PPN: BUR-34751B
CAD
$197.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy BARTAP, Bolted, Cu Cable To Flat, 1000 - 1500 kcmil
Specifications
Key Specifications
- Connector Type
- Bus Bar Clamp and Accessories
- Width (Fraction)
- 2-1/2
- Type of Plating
- Unplated
- Size (Hex) or Size (Bolt)
- 1/2
- CSA Certified
- N
- B Length (in)
- 2.25
- Bar Thickness (Range)
- N/A
- UL Recognized
- N
- Copper Stranded (Range)
- 1000 kcmil-1500 kcmil
- Size (Hex) or Size (Bolt) - in
- 0.50
- Rated for Direct Burial
- Y
- Thickness (in)
- 1/4
- UL Listed
- N
Width (in)2.50
Height (Fraction) (in)4
Product DescriptionCast Cu Alloy BARTAP, Bolted, Cu Cable To Flat, 1000 - 1500 kcmil
CULUSN
ROHS CompatibleExempt
Plated (Yes or No)N
Product MaterialCopper Alloy
B Length (Fraction)2-1/4
Thickness0.25
Height (in)4.00
Copper Solid Size (Range)N/A
UPC781810005842
